Machine vision lenses

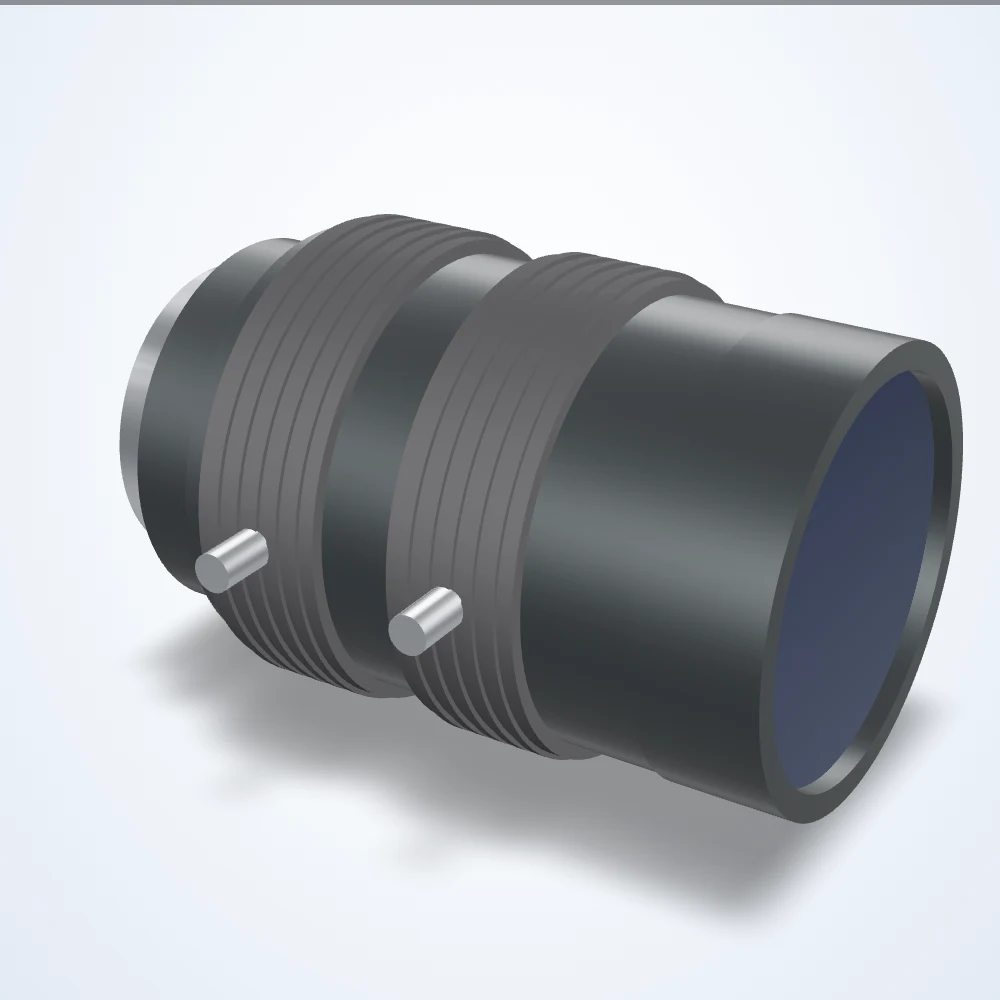

35 mm lens, 1", C-mount (LS-FFL-0180)
Model LS-FFL-0180
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0180 |
|---|---|
| Focal length (mm) | 35 |
| Max. sensor format | 1" |
| Mount | C-mount |
| Aperture (F) | 1.8-16 |
| Angle of view | H 20.4 x V 15.4 deg (D 25.6 deg) |
| Distortion | -0.41% (TV) |
| Angle of view @ 1/1.8″ | 11.5° × 8.6° |
| Angle of view @ 1″ | 20.4° × 15.4° |
| Angle of view @ 2/3″ | 14.0° × 10.6° |
| Back focus | 16.4mm in air |
| Dimensions (dia. x length, mm) | 39 x 56.42 |
| Entrance pupil position | 28.1 (E.P.) |
| Exit pupil | -45.2mm |
| Filter thread | M34x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Front diameter | 26.7 mm |
| Front/rear effective dia. | Front 26.7mm / Rear 14.3mm |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Length at 0.2m | 69.57 |
| Lens type | Fixed Focal Length |
| Magnification with 10mm ring | 0.457× |
| Magnification with 1mm ring | 0.216× |
| Magnification with 20mm ring | 0.722× |
| Magnification with 5mm ring | 0.323× |
| Minimum object distance (m) | 0.2 |
| Minimum object distance with 10mm ring | 81 mm |
| Minimum object distance with 1mm ring | 173 mm |
| Minimum object distance with 20mm ring | 51 mm |
| Minimum object distance with 5mm ring | 115 mm |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 9.6x12.8mm |
| Rear effective diameter | 14.3 mm |
| Resolution (line pairs / mm @ center) | 160 |
| Resolution center/corner | Center 160lp/mm, corner 100lp/mm |
| Shooting range at mod | 68.0(H)×51.0(V) |
| Spectrum | SWIR |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | -0.37 |
| Weight (g) | 170 |
