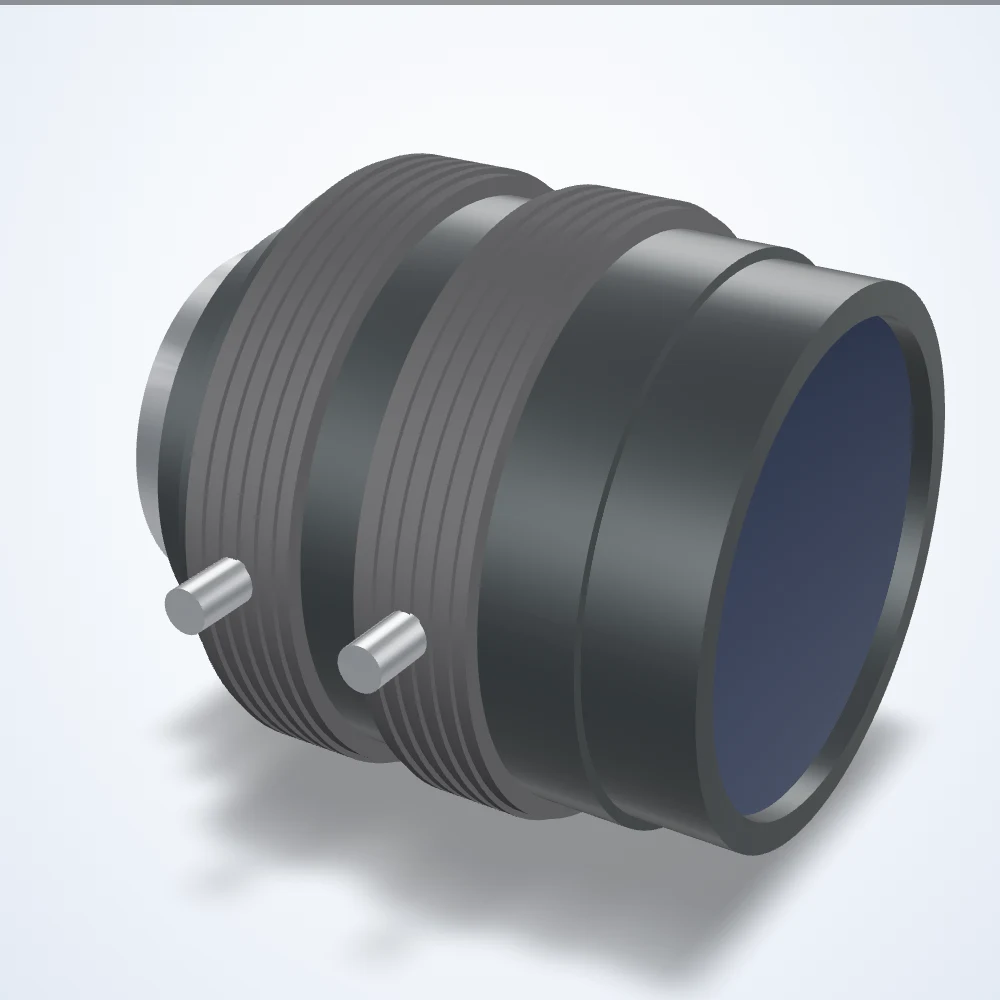

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 1", C-Mount (LS-FFL-0177)
Model LS-FFL-0177
35 mm lens, 1", C-Mount. Minimum object distance 300 mm. Aperture f/1.4 to f/16.
Specifications
| Model | LS-FFL-0177 |
|---|---|
| Front Diameter | 24.3 mm |
| Image Circle Diameter | 16 mm |
| Image Size Dimensions | 12.8 mm x 9.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.12× |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 80 |
| Resolution (MP) | 5 |
| Resolution (Pixel Size) | 5 μm |
| Focal length (mm) | 35 |
| Aperture (F) | 1.4-16 |
| Max. sensor format | 1" |
| Minimum object distance (m) | 0.3 |
| Angle of view | H 20.9 x V 15.8 deg (D 26.1 deg) |
| Distortion | -0.5% (TV) |
| Filter thread | M35.5x0.5 |
| Mount | C |
| Weight (g) | 135 |
| Dimensions (dia. x length, mm) | 43 x 43 |
| Picture size (largest format) | 9.6x12.8mm |
| Flange back | 17.526mm in air |
| Back focus | 16.8mm in air |
| Front/rear effective dia. | Front 24.3mm / Rear 19.1mm |
| Exit pupil | -50.9mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
| Length at 0.3m | 48.42 |
| Entrance pupil position | 29.5 (E.P.) |
| Thumb screw | M2 |
