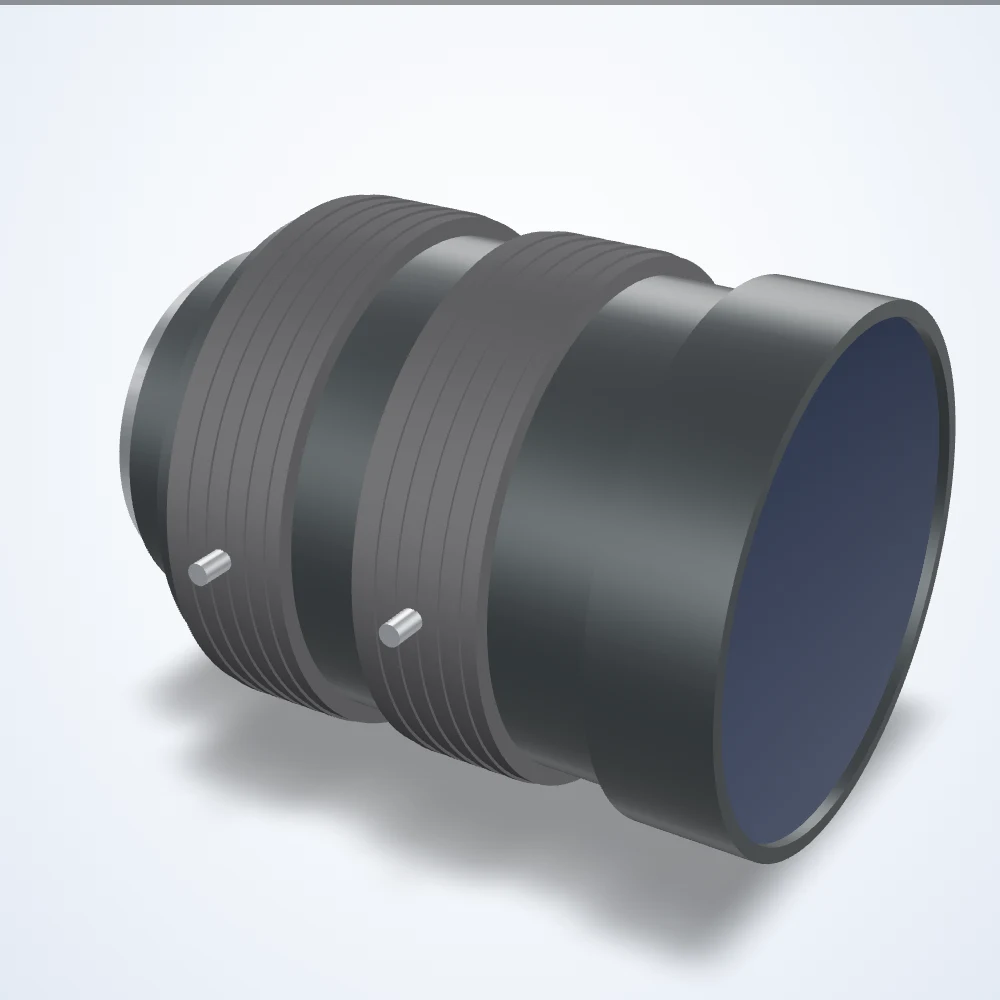

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
28 mm lens, Full size (24x36mm), F-mount (LS-FFL-0174)
Model LS-FFL-0174
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0174 |
|---|---|
| Focal length (mm) | 28 |
| Max. sensor format | Full size (24x36mm) |
| Mount | F-mount |
| Aperture (F) | 2.8-22 |
| Angle of view | H 64.6 x V 45.8 deg (D 74.1 deg) |
| Distortion | -0.17% (TV) |
| Angle of view @ 1″ | 25.3° × 19.1° |
| Angle of view @ 4/3″ | 35.8° × 27.2° |
| Angle of view @ full size | 64.6° × 45.8° |
| Back focus | 38.5mm in air |
| Dimensions (dia. x length, mm) | 75 x 98 |
| Element | 9 groups 12 elements |
| Entrance pupil position | 35.3 (E.P.) |
| Exit pupil | -132.8mm |
| Filter thread | M72x0.75 |
| Flange back | 46.5mm in air |
| Focus control | Manual |
| Focus range | 0.5 m - ∞ |
| Front diameter | 55 mm |
| Front/rear effective dia. | Front 55.0 / Rear 37.4 |
| Image circle | 23 mm |
| Image size dimensions | 18.4 mm x 13.8 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.5 |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 24x36mm |
| Rear effective diameter | 37.4 mm |
| Resolution (line pairs / mm @ center) | 160 |
| Resolution center/corner | Center 160lp/mm, corner 63lp/mm |
| Shooting range at mod | 424.3×281.1 |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Tv distortion (%) | −0.17 |
| Weight (g) | 500 |
