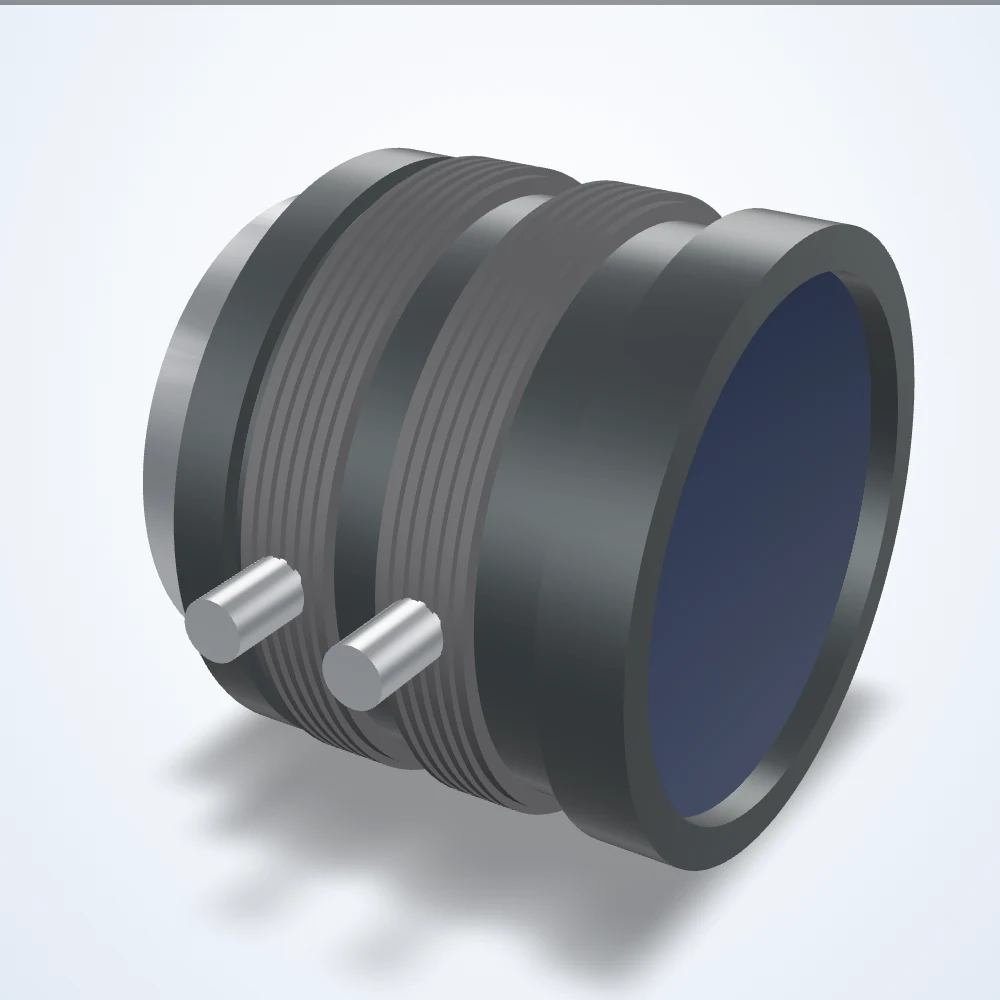

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 2/3", C-Mount (LS-FFL-0168)
Model LS-FFL-0168
25 mm lens, 2/3", C-Mount. Minimum object distance 200 mm. Aperture f/2.8 to f/16.
Specifications
| Model | LS-FFL-0168 |
|---|---|
| Front Diameter | 18.9 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.12× |
| Resolution (Line Pairs / mm @ Center) | 160 |
| Resolution (Line Pairs / mm @ Corner) | 125 |
| Resolution (MP) | 5 |
| Resolution (Pixel Size) | 3.45 μm |
| Focal length (mm) | 25 |
| Aperture (F) | 2.8-16 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.2 |
| Angle of view | 20.0 x 15.0 deg (H x V), 24.8 deg diagonal |
| Distortion | 0.06% (TV) |
| Mount | C |
| Weight (g) | 55 |
| Dimensions (dia. x length, mm) | 32 x 25 |
| Length at MOD | 27.93 mm (at 0.2 m) |
| Entrance pupil position | 25.2 mm from front |
| Picture size | 6.6x8.8mm |
| Distortion (1/1.8" / 1/2") | 0.02% / 0.02% |
| Field of view at MOD (2/3") | V 56mm, H 75mm, D 95mm |
| Flange back | 17.526mm in air |
| Back focus | 11.7mm in air |
| Front/rear effective dia. | Front 18.9mm / Rear 13.7mm |
| Exit pupil | -58.8mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 160 lp/mm / Corner 100 lp/mm |
| Rear dimension shown | 17.5 |
| Mount thread | 1-32UNF |
| Thumb screw | M2 |
