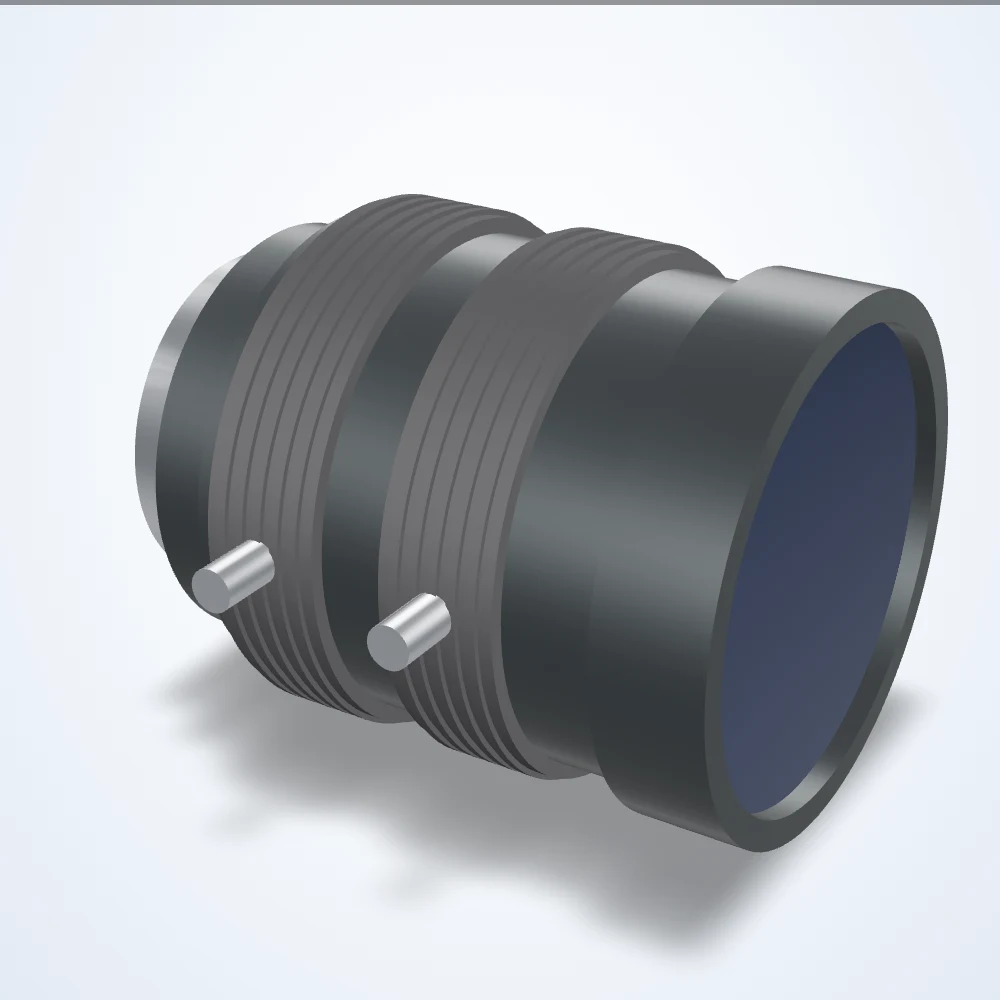

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 2/3", C-Mount (LS-FFL-0167)
Model LS-FFL-0167
25 mm lens, 2/3", C-Mount. Minimum object distance 100 mm. Aperture f/1.6 to f/16.
Specifications
| Model | LS-FFL-0167 |
|---|---|
| Front Diameter | 20 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.251× |
| Resolution (Line Pairs / mm @ Center) | 160 |
| Resolution (Line Pairs / mm @ Corner) | 125 |
| Resolution (MP) | 5 |
| Resolution (Pixel Size) | 3.5 μm |
| Focal length (mm) | 25 |
| Aperture (F) | 1.6-16 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.1 |
| Angle of view | 19.9 x 15.0 deg (H x V), 24.8 deg diagonal |
| Distortion | -0.01% (TV) |
| Filter thread | M30.5x0.5 |
| Mount | C |
| Weight (g) | 115 |
| Dimensions (dia. x length, mm) | 38.5 x 45.5 |
| Length at MOD | 54.4 mm (at 0.1 m) |
| Entrance pupil position | 29.6 mm from front |
| Element | 7 groups 9 elements |
| Picture size | 6.6x8.8mm |
| Shooting range at MOD (2/3") | V 26.3mm, H 35.1mm, D 43.9mm |
| Flange back | 17.526mm in air |
| Back focus | 11.2mm in air |
| Front/rear effective dia. | Front 20.0mm / Rear 13.8mm |
| Exit pupil | -46.6mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 160 lines/mm / Corner 100 lines/mm |
| Other diameters shown | 32, 31 (rear) |
| Mount thread | 1-32UNF |
| Thumb screw | M2 |
