Machine vision lenses

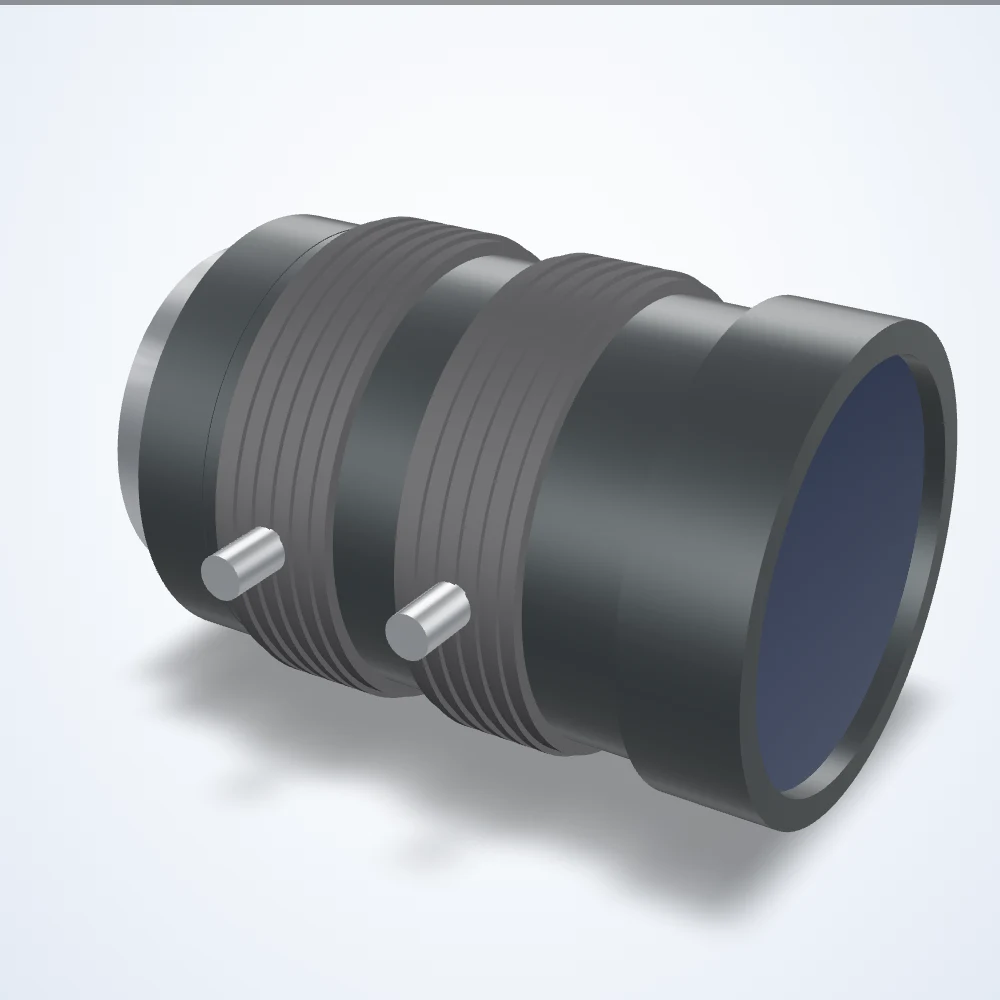

25 mm lens, 2/3", C-mount (LS-FFL-0166)
Model LS-FFL-0166
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0166 |
|---|---|
| Focal length (mm) | 25 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 1.4-16 |
| Angle of view | 20.1 x 15.1 deg (H x V), 25.0 deg diagonal |
| Distortion | -0.3% (TV) |
| Angle of view @ 1/1.8″ | 16.5° × 12.4° |
| Angle of view @ 1/2″ | 14.6° × 11.0° |
| Angle of view @ 2/3″ | 20.1° × 15.1° |
| Back focus | 12.0mm in air |
| Barrel marking | f=25mm/F1.4 DN |
| Dimensions (dia. x length, mm) | 34 x 47 |
| Element | 7 groups 9 elements |
| Entrance pupil position | 26.7 mm from front |
| Exit pupil | -113.6mm |
| Filter thread | M30.5x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Front diameter | 23.7 mm |
| Front/rear effective dia. | Front 23.7mm / Rear 14.4mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Length at mod | 49.1 mm (at 0.3 m) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.3 |
| Mount thread | 1-32UNF |
| Operating temperature range | -10 to +50 °C |
| Picture size | 6.6x8.8mm |
| Rear effective diameter | 14.4 mm |
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 120 lines/mm / Corner 80 lines/mm |
| Shooting range at mod (2/3") | V 84.5mm, H 113.3mm, D 142.5mm |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | −0.3 |
| Weight (g) | 110 |
