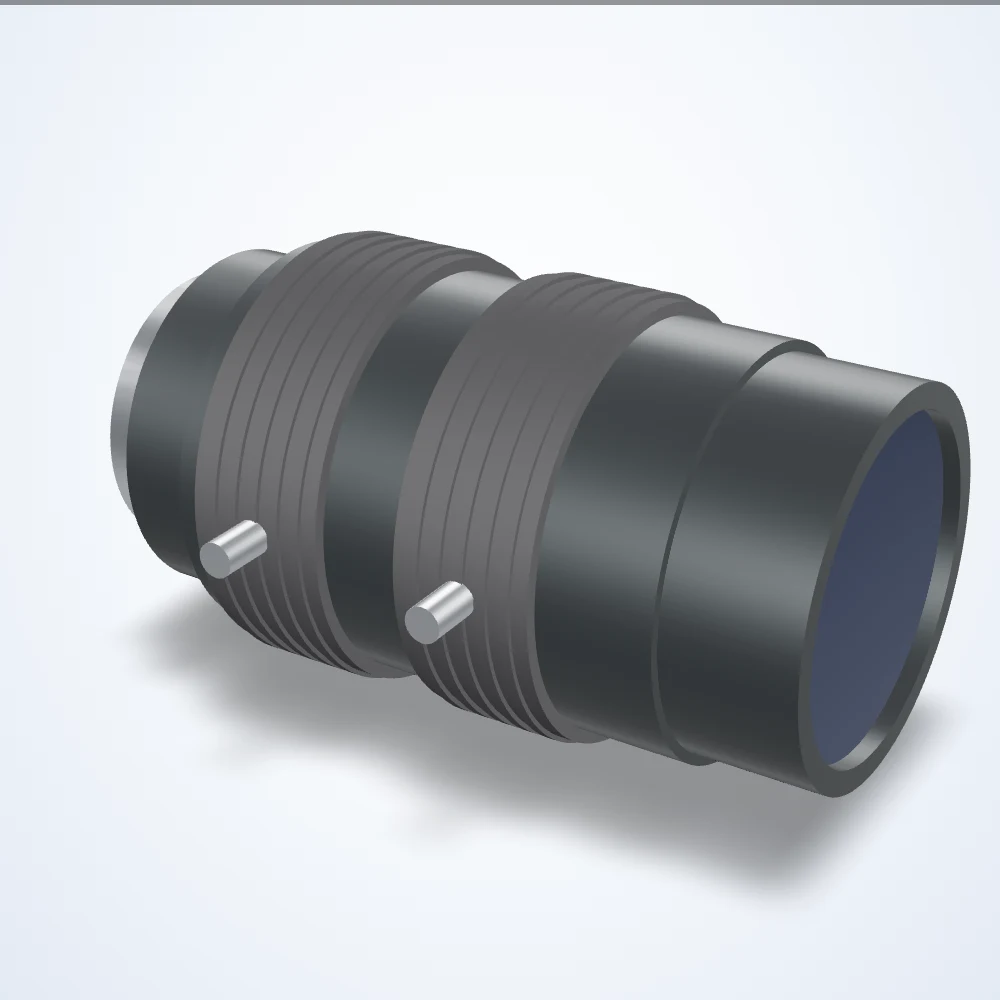

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 1", C-mount (LS-FFL-0162)
Model LS-FFL-0162
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0162 |
|---|---|
| Focal length (mm) | 25 |
| Max. sensor format | 1" |
| Mount | C-mount |
| Aperture (F) | 1.8-16 |
| Angle of view | 29.2 x 22.0 deg (H x V), 36.4 deg diagonal |
| Distortion | -0.97% (TV) |
| Angle of view @ 1/1.8″ | 16.5° × 12.3° |
| Angle of view @ 1″ | 29.2° × 22.0° |
| Angle of view @ 2/3″ | 20.2° × 15.0° |
| Back focus | 24.5mm in air |
| Dimensions (dia. x length, mm) | 39 x 65.5 |
| Exit pupil | -225.3mm |
| Field of view at mod (1") | V 81mm, H 109mm, D 138mm |
| Filter thread | M27x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Front diameter | 18.9 mm |
| Front/rear effective dia. | Front 18.9mm / Rear 18.7mm |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Length at mod | 69.7 mm (at 0.2 m) |
| Lens type | Fixed Focal Length |
| Magnification with 10mm ring | 0.514× |
| Magnification with 1mm ring | 0.159× |
| Magnification with 20mm ring | 0.895× |
| Magnification with 5mm ring | 0.316× |
| Minimum object distance (m) | 0.2 |
| Minimum object distance with 10mm ring | 37 mm |
| Minimum object distance with 1mm ring | 147 mm |
| Minimum object distance with 20mm ring | 16 mm |
| Minimum object distance with 5mm ring | 68 mm |
| Mount thread | 1-32UNF |
| Operating temperature range | -10 to +50 °C |
| Picture size | 9.6x12.8mm |
| Rear effective diameter | 18.7 mm |
| Resolution (line pairs / mm @ center) | 160 |
| Resolution center/corner | Center 160 lp/mm / Corner 100 lp/mm |
| Shooting range at mod | 109.0(H)×81.0(V) |
| Spectrum | VIS-SWIR |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | -0.97 |
| Weight (g) | 160 |
