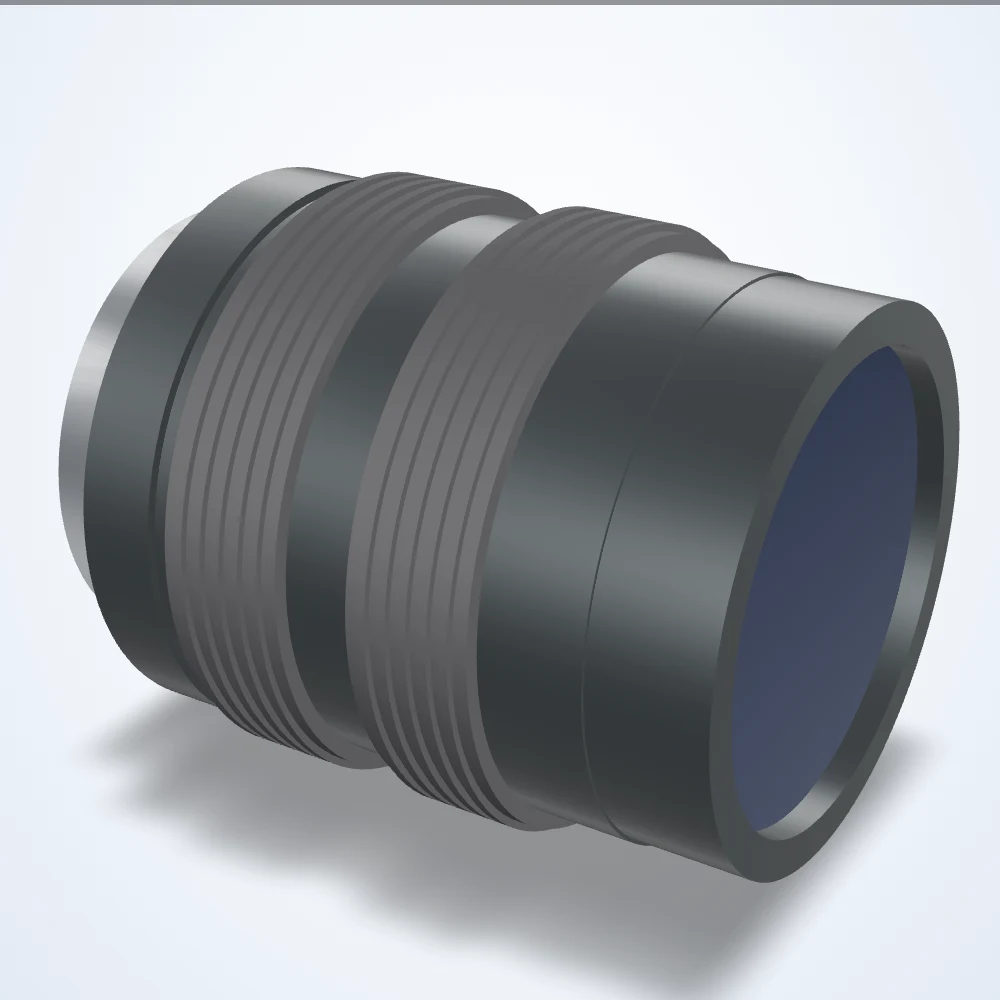

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 2/3", C-mount (LS-FFL-0154)
Model LS-FFL-0154
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0154 |
|---|---|
| Focal length (mm) | 16 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 1.4, 4, 8, 16 |
| Angle of view | 30.0 x 22.7 deg (H x V), 37.0 deg diagonal |
| Distortion | -0.05% (TV) |
| IP rating | IP67 |
| Angle of view @ 1/1.8″ | 24.7° × 18.6° |
| Angle of view @ 1/2″ | 21.8° × 16.4° |
| Angle of view @ 2/3″ | 30.0° × 22.7° |
| Back focus | 13.1mm in air (Mechanical 13.1mm in air) |
| Dimensions (dia. x length, mm) | 33 x 36.5 |
| Element | 7 groups 8 elements |
| Entrance pupil position | 15.2 mm from front |
| Exit pupil | 338.4mm |
| Filter thread | M27x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Front diameter | 20.2 mm |
| Front/rear effective dia. | Front 20.2mm / Rear 15.5mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Length at mod | 37.8 mm (at 0.2 m) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Mount thread | 1-32 UNF |
| Operating temperature range | -10 to +50 °C |
| Picture size | 6.6x8.8mm |
| Rear diameter | 22.5 mm |
| Rear effective diameter | 15.5 mm |
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100 lp/mm / Corner 80 lp/mm |
| Rings shown | Focus ring + red lock ring (FAR/NEAR) |
| Shooting range at mod (2/3") | V 84.4mm, H 112.8mm, D 141.2mm |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Tv distortion (%) | −0.05 |
| Weight (g) | 75 |
