Machine vision lenses

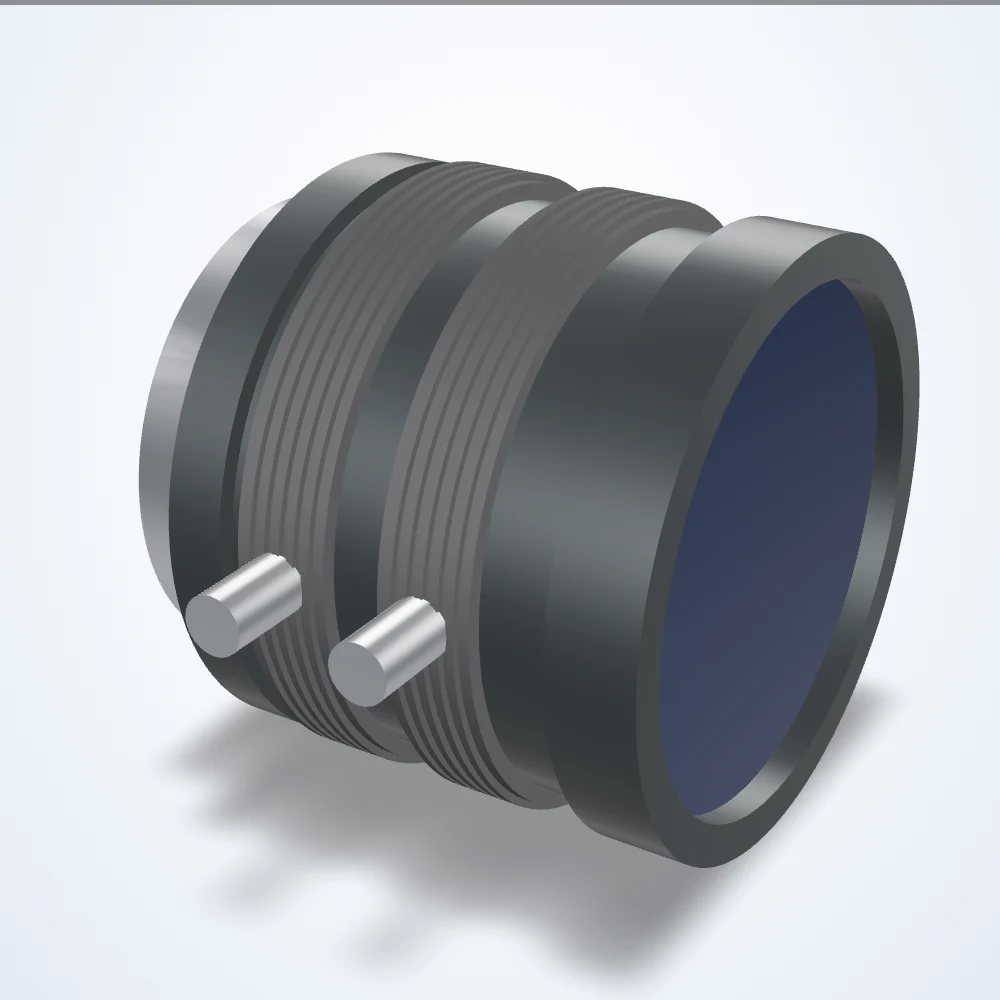

16 mm lens, 2/3", C-mount (LS-FFL-0152)
Model LS-FFL-0152
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0152 |
|---|---|
| Focal length (mm) | 16 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 2.8-16 |
| Angle of view | 30.9 x 23.4 deg (H x V), 38.2 deg diagonal |
| Distortion | -0.09% (TV) |
| Angle of view @ 1/1.8″ | 25.5° × 19.2° |
| Angle of view @ 1/2″ | 22.7° × 17.2° |
| Angle of view @ 2/3″ | 30.9° × 23.4° |
| Back focus | 14.7mm in air |
| Dimensions (dia. x length, mm) | 32 x 26.5 |
| Entrance pupil position | 16.8 mm from front |
| Exit pupil | -48.9mm |
| Field of view at mod (2/3") | V 88mm, H 117mm, D 147mm |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Front diameter | 16.3 mm |
| Front/rear effective dia. | Front 16.3mm / Rear 13.9mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Length at mod | 27.71 mm (at 0.2 m) |
| Lens type | Fixed Focal Length |
| Magnification with 1mm ring | 0.14× |
| Minimum object distance (m) | 0.2 |
| Minimum object distance with 1mm ring | 105 mm |
| Mount thread | 1-32UNF |
| Operating temperature range | -10 to +50 °C |
| Picture size | 6.6x8.8mm |
| Rear diameter | 18 mm |
| Rear effective diameter | 13.9 mm |
| Resolution (line pairs / mm @ center) | 160 |
| Resolution center/corner | Center 160 lp/mm / Corner 100 lp/mm |
| Shooting range at mod | 117.0(H)×88.0(V) |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | -0.09 |
| Weight (g) | 55 |
