Machine vision lenses

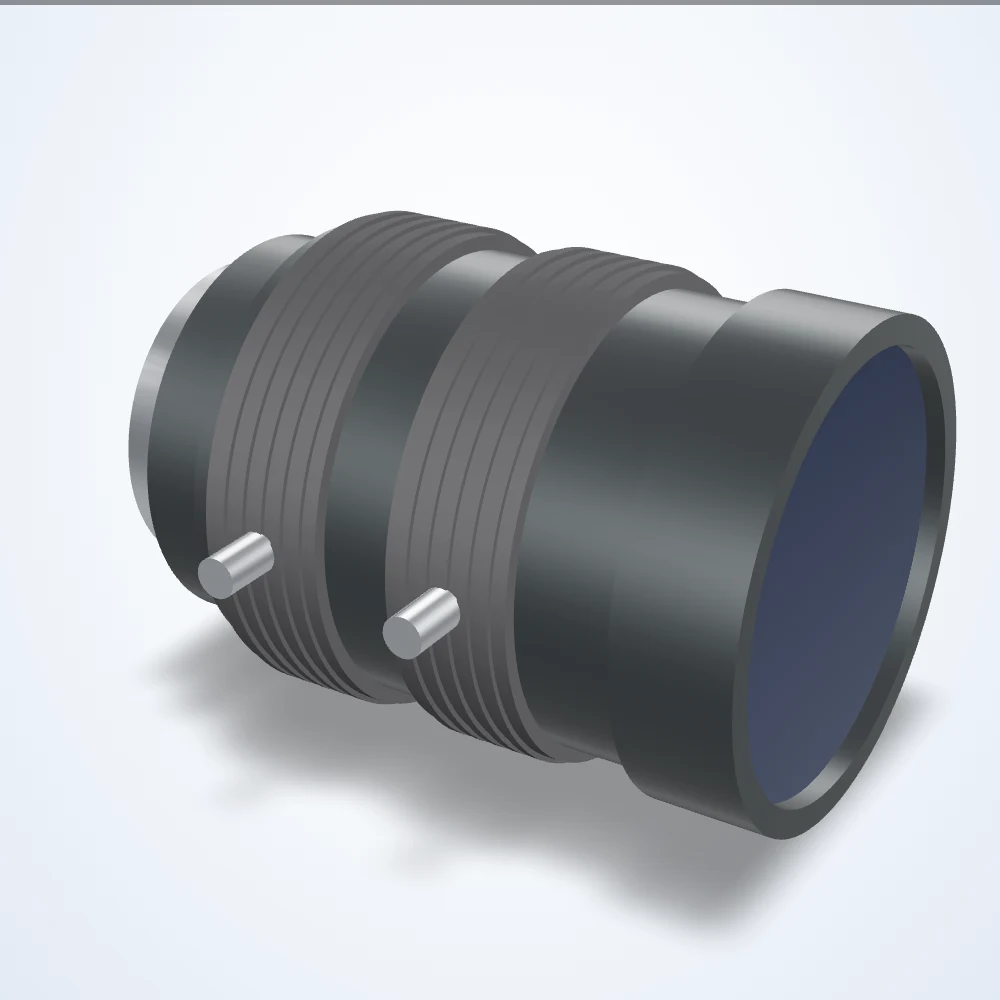

16 mm lens, 2/3", C-mount (LS-FFL-0151)
Model LS-FFL-0151
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0151 |
|---|---|
| Focal length (mm) | 16 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 1.4-16 |
| Angle of view | 29.9 x 22.7 deg (H x V), 36.9 deg diagonal |
| Distortion | 0.03% (TV) |
| Angle of view @ 1/1.8″ | 24.7° × 18.6° |
| Angle of view @ 1/2″ | 22.0° × 16.6° |
| Angle of view @ 2/3″ | 29.9° × 22.7° |
| Back focus | 11.6mm in air |
| Dimensions (dia. x length, mm) | 38.5 x 52 |
| Element | 9 groups 10 elements |
| Entrance pupil position | 29.3 mm from front |
| Exit pupil | -105.7mm |
| Filter thread | M30.5x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Front diameter | 24.5 mm |
| Front/rear effective dia. | Front 24.5mm / Rear 16.6mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Length at mod | 57.3 mm (at 0.15 m) |
| Lens type | Fixed Focal Length |
| Magnification with 1mm ring | 0.195× |
| Minimum object distance (m) | 0.1 |
| Minimum object distance with 1mm ring | 62 mm |
| Mount thread | 1-32UNF |
| Operating temperature range | -10 to +50 °C |
| Other diameters shown | 32, 31 (rear) |
| Picture size | 6.6x8.8mm |
| Rear effective diameter | 16.6 mm |
| Resolution (line pairs / mm @ center) | 160 |
| Resolution center/corner | Center 160 lines/mm / Corner 100 lines/mm |
| Shooting range at mod (2/3") | V 48.4mm, H 64.6mm, D 81.1mm |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | 0.03 |
| Weight (g) | 125 |
