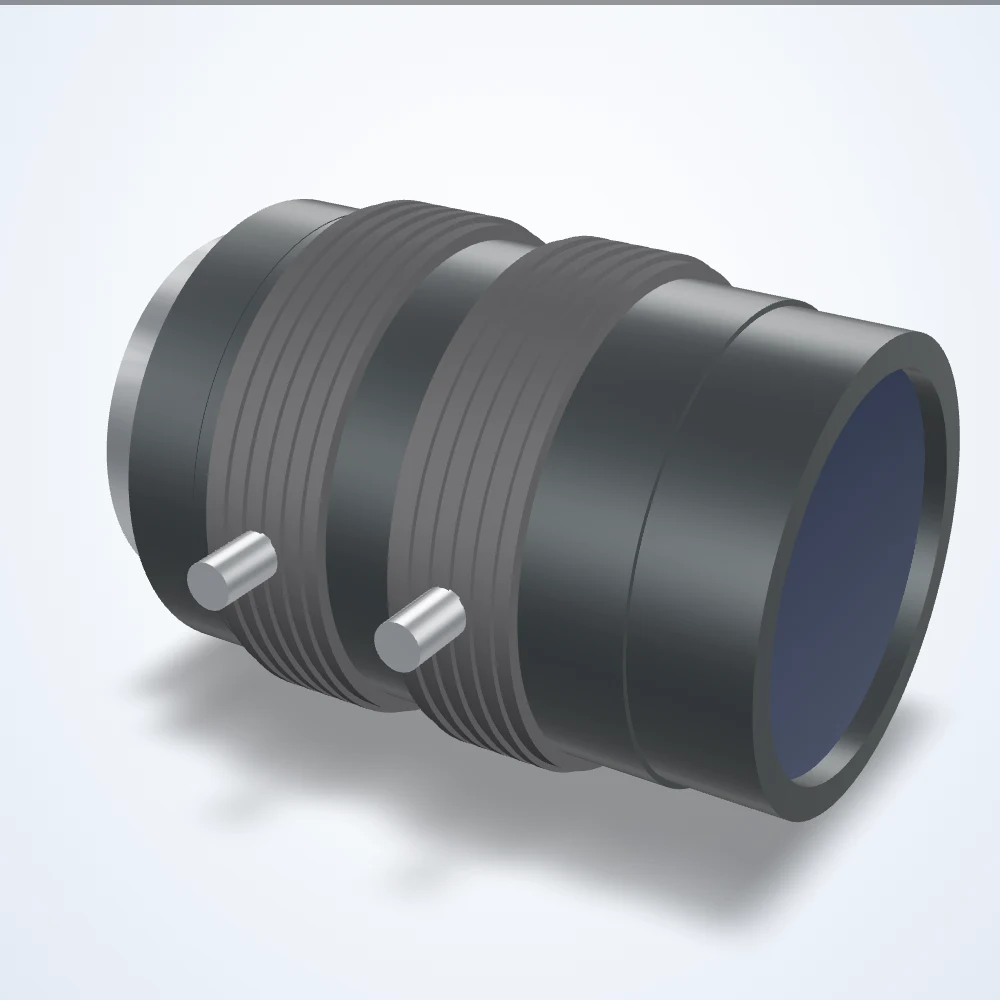

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 2/3", C-Mount (LS-FFL-0150)
Model LS-FFL-0150
16 mm lens, 2/3", C-Mount. Minimum object distance 300 mm. Aperture f/1.4 to f/16.
Specifications
| Model | LS-FFL-0150 |
|---|---|
| Front Diameter | 14.5 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 80 |
| Resolution (MP) | 5 |
| Resolution (Pixel Size) | 3.5 μm |
| Focal length (mm) | 16 |
| Aperture (F) | 1.4-16 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.3 |
| Angle of view | 30.9 x 23.2 deg (H x V), 38.4 deg diagonal |
| Distortion | -0.8% (TV) |
| Filter thread | M27x0.5 |
| Mount | C |
| Weight (g) | 100 |
| Dimensions (dia. x length, mm) | 34 x 44.5 |
| Length at MOD | 45.5 mm (at 0.3 m) |
| Entrance pupil position | 17.4 mm from front |
| Element | 7 groups 8 elements |
| Picture size | 6.6x8.8mm |
| Shooting range at MOD (2/3") | V 127.4mm, H 171.4mm, D 216.8mm |
| Flange back | 17.526mm in air |
| Back focus | 14.7mm in air |
| Front/rear effective dia. | Front 14.5mm / Rear 14.5mm |
| Exit pupil | -1067.4mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 120 lines/mm / Corner 80 lines/mm |
| Barrel marking | f=16mm/F1.4 DN |
| Mount thread | 1-32UNF |
| Thumb screw | M2 |
