Machine vision lenses

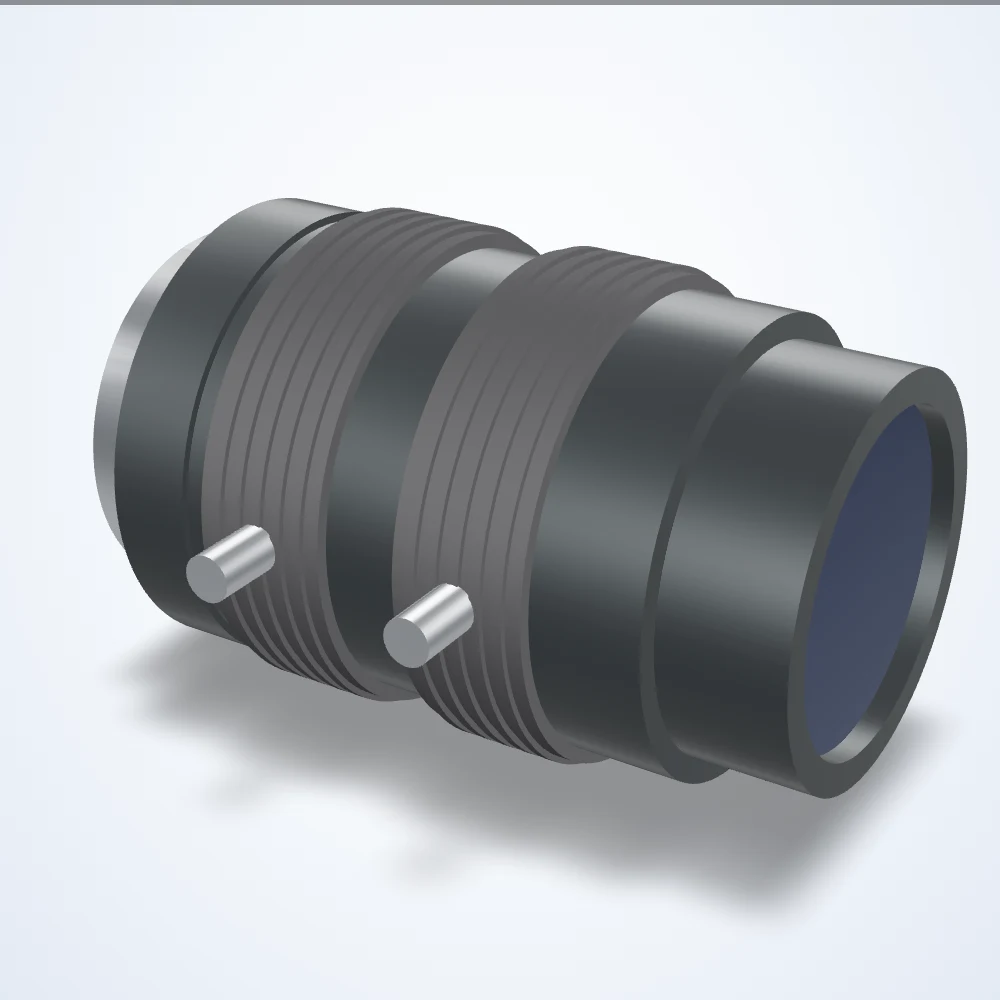

16 mm lens, 2/3", C-Mount (LS-FFL-0148)
Model LS-FFL-0148
16 mm lens, 2/3", C-Mount. Minimum object distance 100 mm. Aperture f/1.8 to f/16.
Specifications
| Model | LS-FFL-0148 |
|---|---|
| Front Diameter | 21.2 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.15× |
| Resolution (Line Pairs / mm @ Center) | 200 |
| Resolution (Line Pairs / mm @ Corner) | 160 |
| Resolution (MP) | 10 |
| Resolution (Pixel Size) | 2.5 μm |
| Focal length (mm) | 16 |
| Aperture (F) | 1.8-16 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.1 |
| Angle of view | 30.0 x 22.7 deg (H x V), 37.1 deg diagonal |
| Distortion | -0.20% (TV) |
| Filter thread | M25.5x0.5 |
| Mount | C |
| Weight (g) | 90 |
| Dimensions (dia. x length, mm) | 33 x 47.5 |
| Length at MOD | 50 mm (at 0.1 m) |
| Entrance pupil position | 23.5 mm from front |
| Element | 8 groups 10 elements |
| Picture size | 6.6x8.8mm |
| Shooting range at MOD (2/3") | V 45.7mm, H 61.1mm, D 76.5mm |
| Flange back | 17.526mm in air |
| Back focus | 14.6mm in air |
| Front/rear effective dia. | Front 21.2mm / Rear 13.4mm |
| Exit pupil | -54.2mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 200 lp/mm / Corner 140 lp/mm |
| Lens coating | Wide band multi coating |
| Mount thread | 1-32UNF |
| Thumb screw | M2 |
