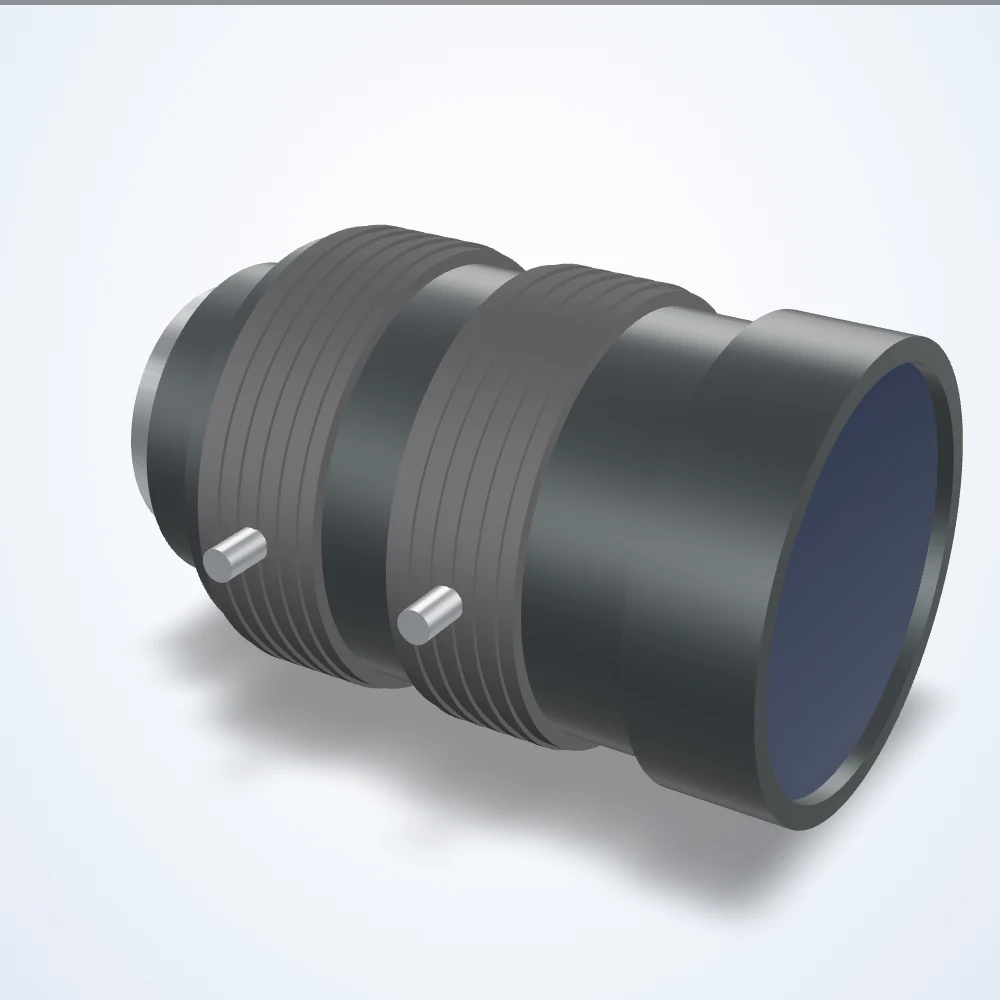

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 1.1", C-Mount (LS-FFL-0142)
Model LS-FFL-0142
16 mm lens, 1.1", C-Mount. Minimum object distance 100 mm. Aperture f/1.8 to f/16.
Specifications
| Model | LS-FFL-0142 |
|---|---|
| Front Diameter | 26.5 mm |
| Image Circle Diameter | 17.6 mm |
| Image Size Dimensions | 14.1 mm x 10.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.14× |
| Resolution (Line Pairs / mm @ Center) | 200 |
| Resolution (Line Pairs / mm @ Corner) | 100 |
| Resolution (MP) | 24 |
| Resolution (Pixel Size) | 2.5 μm |
| Focal length (mm) | 16 |
| Aperture (F) | 1.8-16 |
| Max. sensor format | 1.1" |
| Minimum object distance (m) | 0.1 |
| Angle of view | 48.0 x 36.7 deg (H x V), 58.3 deg diagonal |
| Distortion | -0.4% (TV, 1.1") |
| Filter thread | M35.5x0.5 |
| Mount | C |
| Weight (g) | 200 |
| Dimensions (dia. x length, mm) | 43 x 65.7 |
| Length at MOD | 65.5 mm (at 0.1 m) |
| Entrance pupil position | 23.6 mm from front |
| Picture size | 10.6x14.1mm |
| Distortion (1" / 2/3") | -0.4% / -0.3% |
| Field of view at MOD (1.1") | V 77mm, H 102mm, D 127mm |
| Flange back | 17.526mm in air |
| Back focus | 11.9mm in air |
| Front/rear effective dia. | Front 26.5mm / Rear 17.0mm |
| Exit pupil | -58.9mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 200 lp/mm / Corner 100 lp/mm |
| Rear barrel diameter | 41 mm |
| Mount thread | 1-32UNF |
| Thumb screw | M2 |
