Machine vision lenses

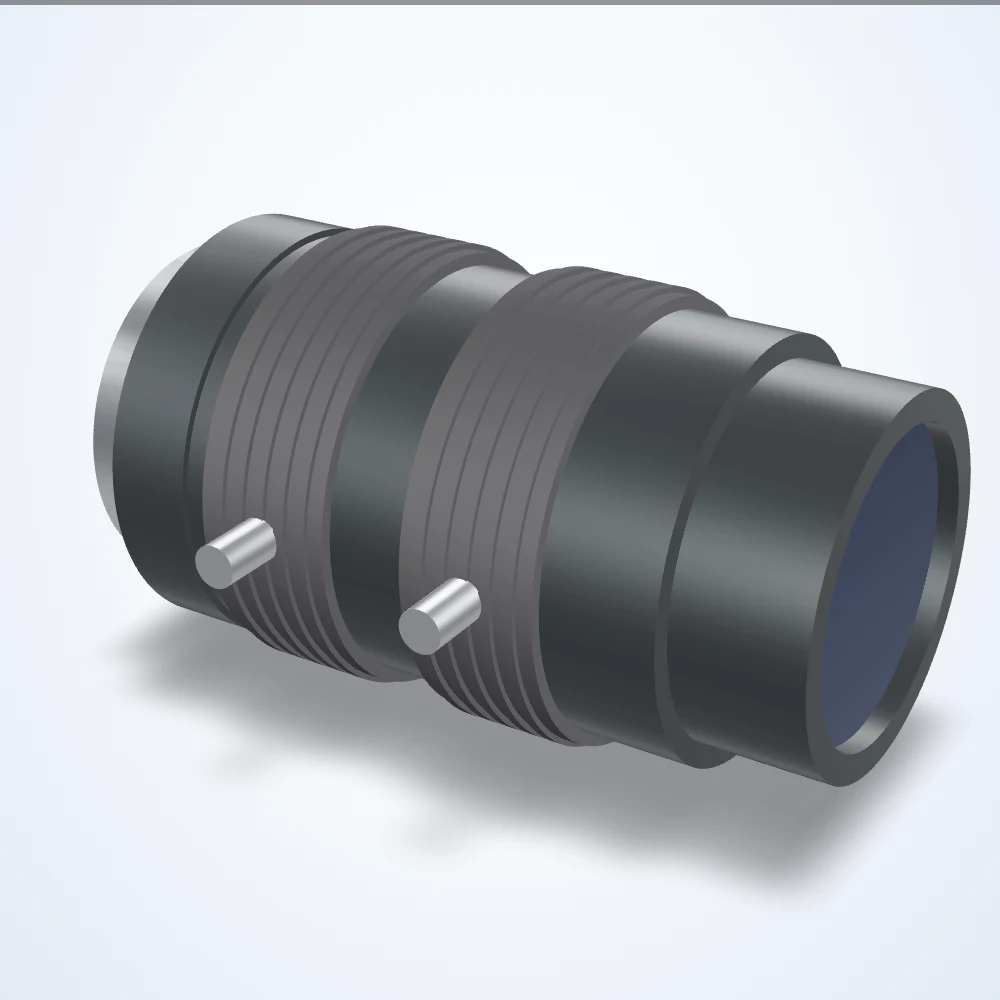

12 mm lens, 2/3", C-Mount (LS-FFL-0134)
Model LS-FFL-0134
12 mm lens, 2/3", C-Mount. Minimum object distance 100 mm. Aperture f/1.8 to f/11.
Specifications
| Model | LS-FFL-0134 |
|---|---|
| Front Diameter | 18.4 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.11× |
| Resolution (Line Pairs / mm @ Center) | 200 |
| Resolution (Line Pairs / mm @ Corner) | 160 |
| Resolution (MP) | 10 |
| Resolution (Pixel Size) | 2.5 μm |
| Focal length (mm) | 12 |
| Aperture (F) | 1.8-11 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.1 |
| Angle of view | 39.1 x 29.8 deg (H x V), 47.8 deg diagonal |
| Distortion | -0.12% (TV) |
| Filter thread | M25.5x0.5 |
| Mount | C |
| Weight (g) | 105 |
| Dimensions (dia. x length, mm) | 33 x 53.5 |
| Length at MOD | 52.5 mm (at 0.1 m) |
| Entrance pupil position | 19.9 mm from front |
| Element | 7 groups 9 elements |
| Picture size | 6.6x8.8mm |
| Shooting range at MOD (2/3") | V 60.2mm, H 80.7mm, D 101.5mm |
| Flange back | 17.526mm in air |
| Back focus | 13.9mm in air |
| Front/rear effective dia. | Front 18.4mm / Rear 16.1mm |
| Exit pupil | 154.1 |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 200 lp/mm / Corner 140 lp/mm |
| Lens coating | Wide band multi coating |
| Mount thread | 1-32UNF |
| Thumb screw | M2 |
