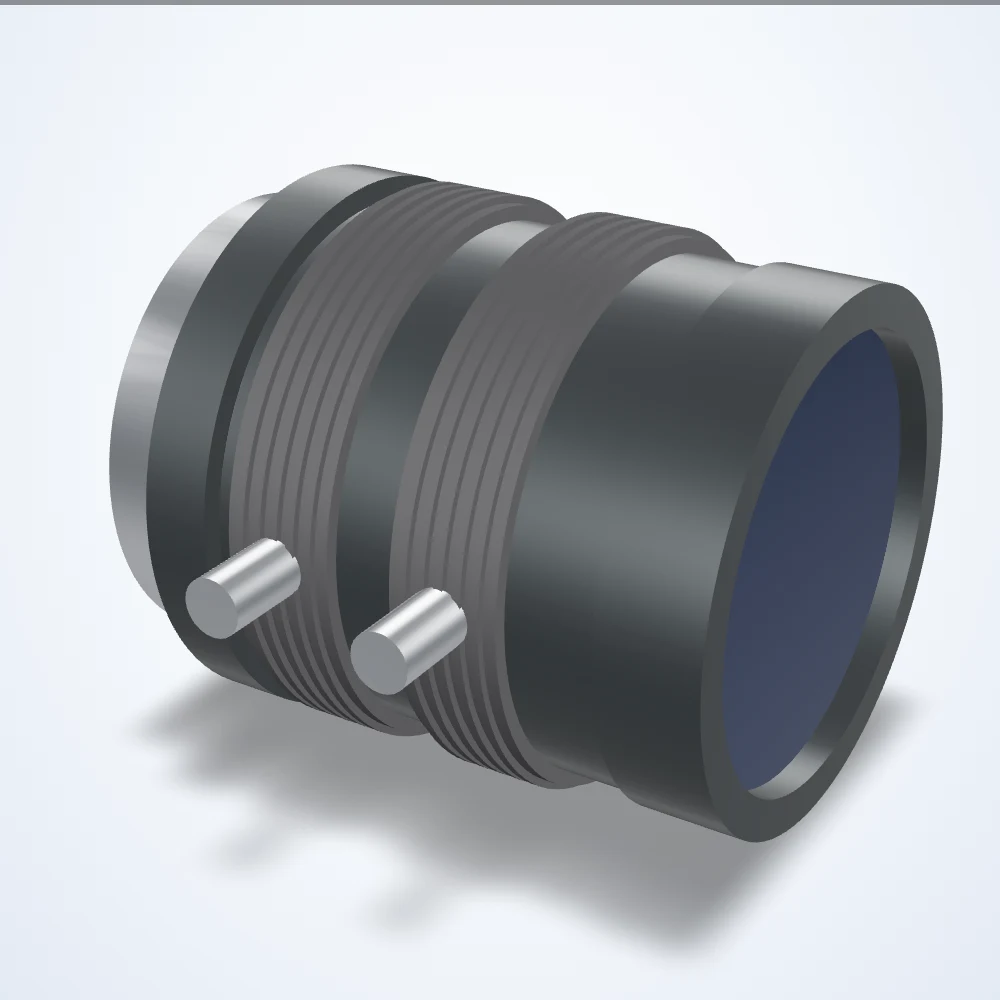

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 2/3", C-Mount (LS-FFL-0133)
Model LS-FFL-0133
12 mm lens, 2/3", C-Mount. Minimum object distance 100 mm. Aperture f/1.4 to f/16.
Specifications
| Model | LS-FFL-0133 |
|---|---|
| Front Diameter | 12.3 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.12× |
| Resolution (Line Pairs / mm @ Center) | 100 |
| Resolution (Line Pairs / mm @ Corner) | 60 |
| Resolution (MP) | 2 |
| Resolution (Pixel Size) | 5 μm |
| Focal length (mm) | 12 |
| Aperture (F) | 1.4-16 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.1 |
| Angle of view | 42.5 x 31.7 deg (H x V), 53.7 deg diagonal |
| Distortion | -2.5% (TV) |
| Filter thread | M27x0.5 |
| Mount | C |
| Weight (g) | 60 |
| Dimensions (dia. x length, mm) | 30 x 31.5 |
| Length at MOD | 33.38 mm (at 0.1 m) |
| Entrance pupil position | 15.3 mm from front |
| Picture size | 6.6x8.8mm |
| Shooting range at MOD (2/3") | V 59.4mm, H 81.1mm, D 105.1mm |
| Flange back | 17.526mm in air |
| Back focus | 11.1mm in air |
| Front/rear effective dia. | Front 12.3mm / Rear 11.7mm |
| Exit pupil | -32.5mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 100 lp/mm / Corner 40 lp/mm |
| Mount thread | 1-32UNF |
| Thumb screw | M2 |
