Machine vision lenses

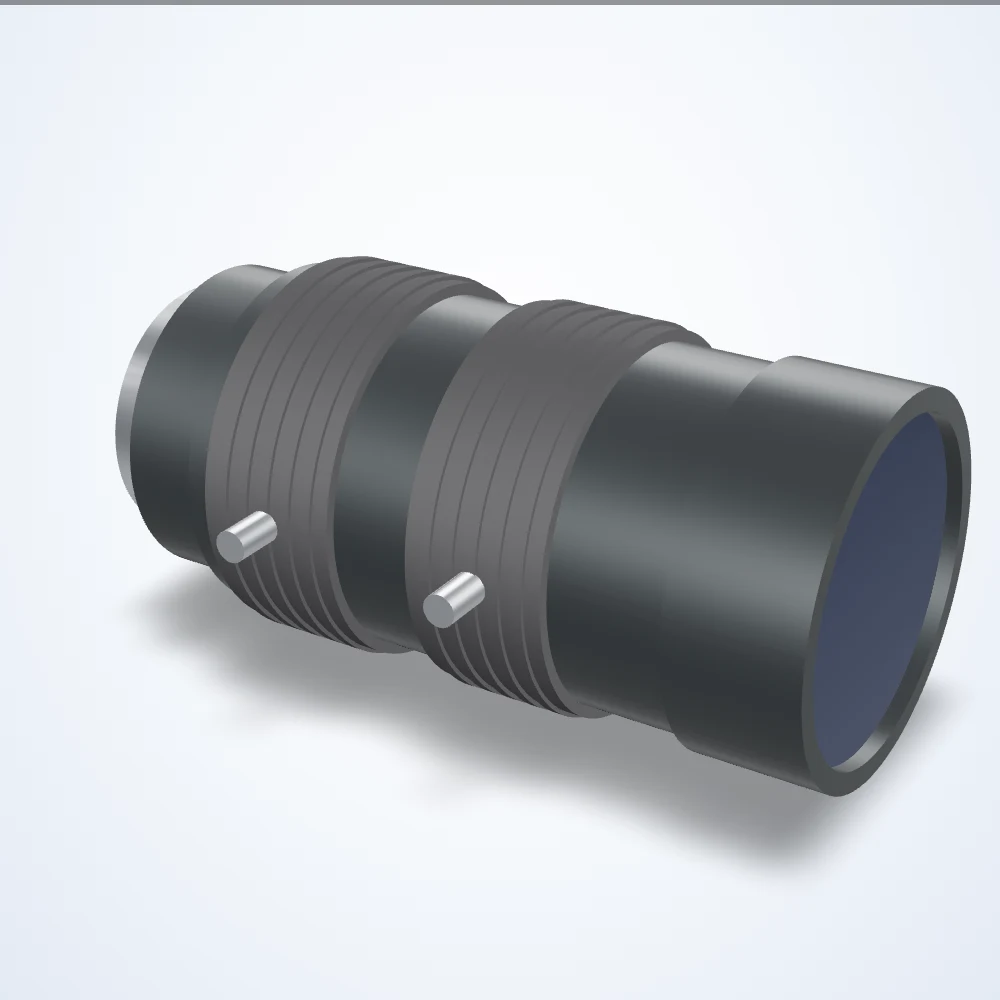

12 mm lens, 1", C-Mount (LS-FFL-0132)
Model LS-FFL-0132
12 mm lens, 1", C-Mount. Minimum object distance 200 mm. Aperture f/1.8 to f/16.
Specifications
| Model | LS-FFL-0132 |
|---|---|
| Front Diameter | 23.2 mm |
| Image Circle Diameter | 16 mm |
| Image Size Dimensions | 12.8 mm x 9.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | SWIR |
| Magnification | 0.0562× |
| Resolution (Line Pairs / mm @ Center) | 160 |
| Resolution (Line Pairs / mm @ Corner) | 100 |
| Resolution (MP) | 12 |
| Resolution (Pixel Size) | 3.1 μm |
| Focal length (mm) | 12 |
| Aperture (F) | 1.8-16 |
| Max. sensor format | 1" |
| Minimum object distance (m) | 0.2 |
| Angle of view | 58.0 x 44.5 deg (H x V), 70.1 deg diagonal |
| Distortion | -1.6% (TV) |
| Filter thread | M34x0.5 |
| Mount | C |
| Weight (g) | 175 |
| Dimensions (dia. x length, mm) | 38 x 73.5 |
| Spectrum | VIS-SWIR |
| Picture size | 9.6x12.8mm |
| Distortion (2/3" / 1/1.8") | -0.97% / -0.69% |
| Field of view at MOD (1") | V 175mm, H 237mm, D 300mm |
| Flange back | 17.526mm in air |
| Back focus | 11.1mm in air |
| Front/rear effective dia. | Front 23.2mm / Rear 14.7mm |
| Exit pupil | -46.6mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 160 lp/mm / Corner 100 lp/mm |
| Mount thread | 1-32UNF |
| Thumb screw | M2 |
