Machine vision lenses

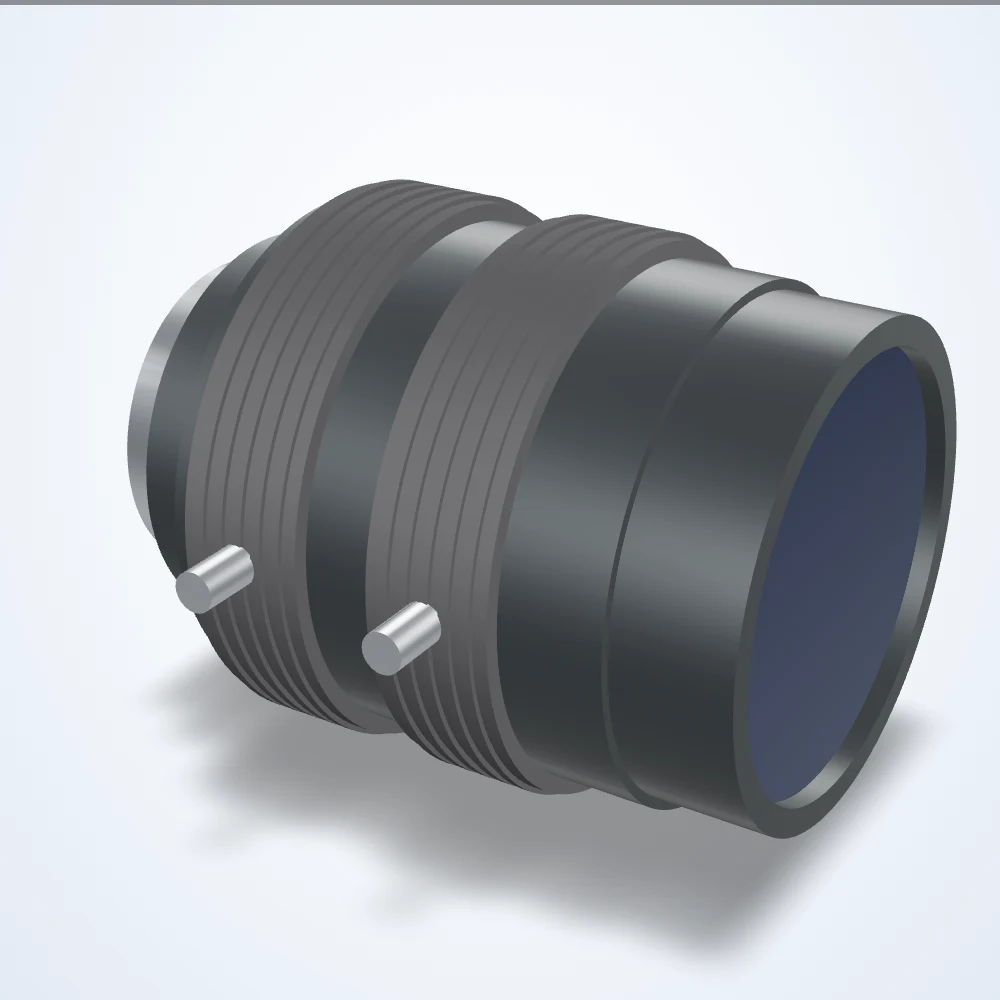

12.5 mm lens, 1", C-Mount (LS-FFL-0130)
Model LS-FFL-0130
12.5 mm lens, 1", C-Mount. Minimum object distance 300 mm. Aperture f/1.4 to f/16.
Specifications
| Model | LS-FFL-0130 |
|---|---|
| Front Diameter | 28.1 mm |
| Image Circle Diameter | 16 mm |
| Image Size Dimensions | 12.8 mm x 9.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | SWIR |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 80 |
| Focal length (mm) | 12.5 |
| Aperture (F) | 1.4-16 |
| Max. sensor format | 1" |
| Minimum object distance (m) | 0.3 |
| Angle of view | 55.6 x 42.5 deg (H x V), 67.6 deg diagonal |
| Distortion | -1.58% (TV) |
| Filter thread | M35.5x0.5 |
| Mount | C |
| Weight (g) | 160 |
| Dimensions (dia. x length, mm) | 43 x 51.5 |
| Length at MOD | 52.75 mm (at 0.3 m) |
| Entrance pupil position | 19.2 mm from front |
| Picture size | 9.6x12.8mm |
| Shooting range at MOD (1") | V 243.5mm, H 330.6mm, D 420.6mm |
| Flange back | 17.526mm in air |
| Back focus | 12.6mm in air |
| Front/rear effective dia. | Front 28.1mm / Rear 17.5mm |
| Exit pupil | -45.9mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 100 lp/mm / Corner 80 lp/mm |
| Mount thread | 1-32UNF |
| Thumb screw | M2, position selectable (120 deg); front view shows 3 positions |
