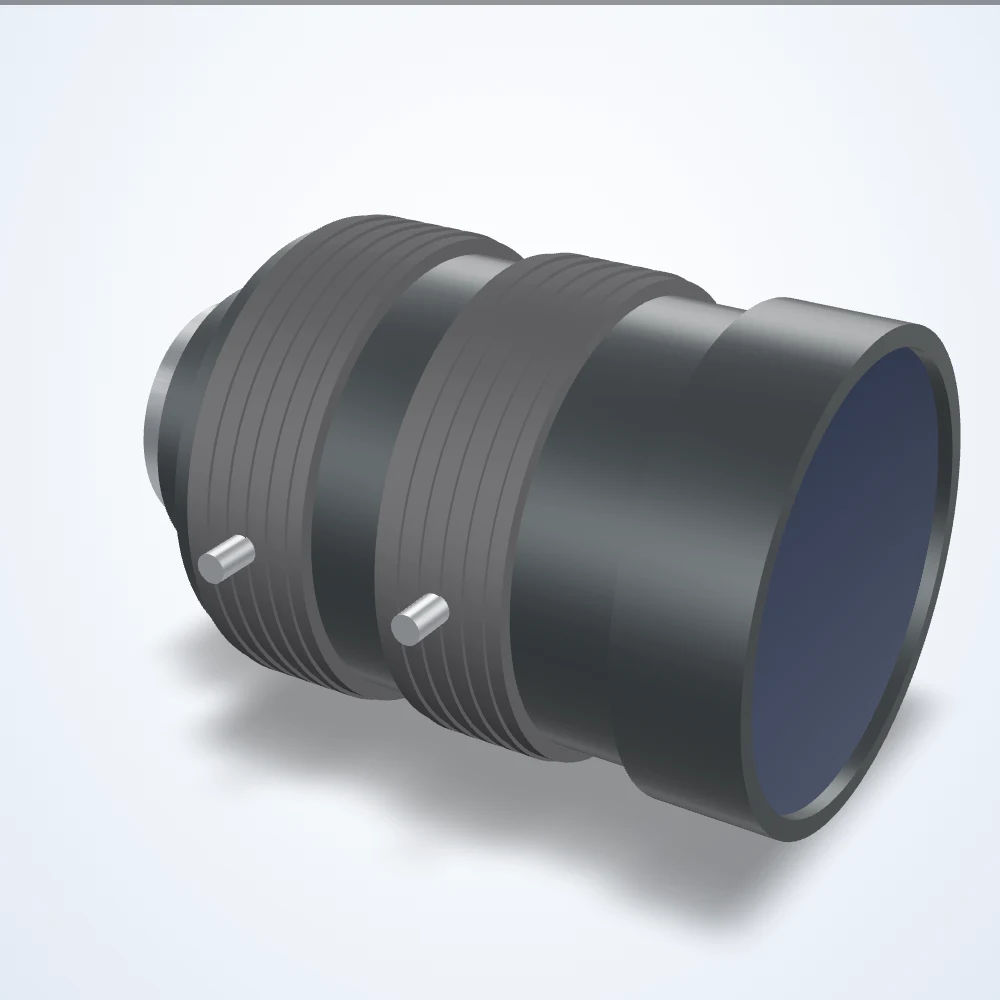

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 1.1", C-Mount (LS-FFL-0128)
Model LS-FFL-0128
12 mm lens, 1.1", C-Mount. Minimum object distance 100 mm. Aperture f/1.8 to f/16.
Specifications
| Model | LS-FFL-0128 |
|---|---|
| Front Diameter | 36.8 mm |
| Image Circle Diameter | 17.6 mm |
| Image Size Dimensions | 14.1 mm x 10.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.11× |
| Resolution (Line Pairs / mm @ Center) | 200 |
| Resolution (Line Pairs / mm @ Corner) | 100 |
| Resolution (MP) | 24 |
| Resolution (Pixel Size) | 2.5 μm |
| Focal length (mm) | 12 |
| Aperture (F) | 1.8-16 |
| Max. sensor format | 1.1" |
| Minimum object distance (m) | 0.1 |
| Angle of view | 60.0 x 46.9 deg (H x V), 71.0 deg diagonal |
| Distortion | 0.26% (TV, 1.1") |
| Filter thread | M49x0.75 |
| Mount | C |
| Weight (g) | 260 |
| Dimensions (dia. x length, mm) | 51 x 73.8 |
| Length at MOD | 71.7 mm (at 0.1 m) |
| Entrance pupil position | 24 mm from front |
| Picture size | 10.6x14.1mm |
| Distortion (1" / 2/3") | 0.03% / -0.22% |
| Field of view at MOD (1.1") | V 101mm, H 135mm, D 168mm |
| Flange back | 17.526mm in air |
| Back focus | 14.5mm in air |
| Front/rear effective dia. | Front 36.8mm / Rear 17.0mm |
| Exit pupil | -118.2mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 200 lp/mm / Corner 100 lp/mm |
| Rear barrel diameter | 42 mm |
| Mount thread | 1-32UNF |
| Thumb screw | M2 |
