Machine vision lenses

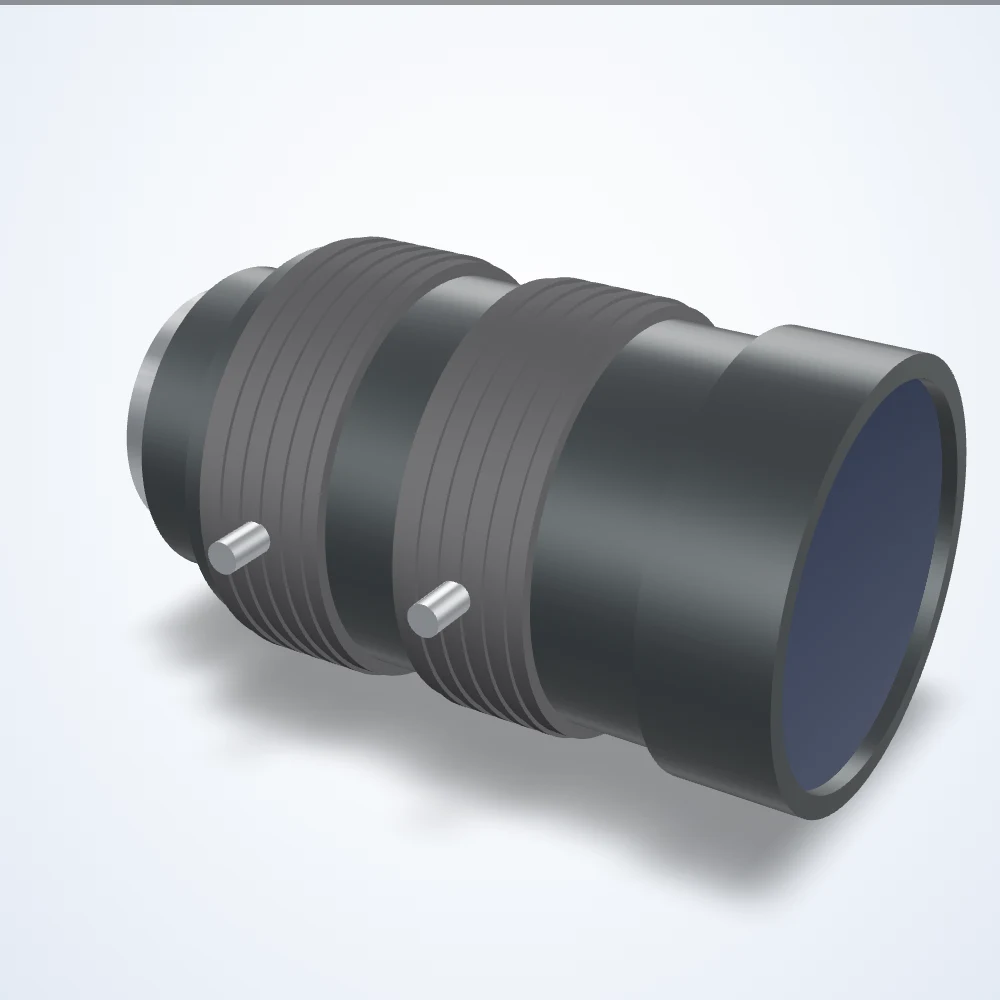

100 mm lens, 2/3", C-mount (LS-FFL-0127)
Model LS-FFL-0127
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0127 |
|---|---|
| Focal length (mm) | 100 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 2.8-32 |
| Angle of view | 5.0 x 3.8 deg (H x V), 6.3 deg diagonal |
| Distortion | -0.05% (TV) |
| Angle of view @ 1/1.8″ | 4.1° × 3.1° |
| Angle of view @ 1/2″ | 3.7° × 2.8° |
| Angle of view @ 2/3″ | 5.0° × 3.8° |
| Back focus | 19.0mm in air |
| Dimensions (dia. x length, mm) | 42 x 70 |
| Exit pupil | -31.0mm |
| Filter thread | M40.5x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 2.0 m - ∞ |
| Front diameter | 35.2 mm |
| Front/rear effective dia. | Front 35.2mm / Rear 11.2mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Length at mod | 75 mm (at 2.0 m) |
| Lens type | Fixed Focal Length |
| Magnification with 10mm ring | 0.15× |
| Magnification with 1mm ring | 0.06× |
| Magnification with 20mm ring | 0.25× |
| Magnification with 5mm ring | 0.1× |
| Minimum object distance (m) | 2.0 |
| Minimum object distance with 10mm ring | 740 mm |
| Minimum object distance with 1mm ring | 1700 mm |
| Minimum object distance with 20mm ring | 480 mm |
| Minimum object distance with 5mm ring | 1060 mm |
| Mount thread | 1-32UNF |
| Operating temperature range | -10 to +50 °C |
| Picture size | 6.6x8.8mm |
| Rear barrel diameter | 33 mm |
| Rear effective diameter | 11.2 mm |
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100 lp/mm / Corner 80 lp/mm |
| Shooting range at mod (2/3") | V 126.6mm, H 168.8mm, D 211.1mm |
| Spectrum | Visible |
| Storage temperature range | -40~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | −0.05 |
| Weight (g) | 145 |
