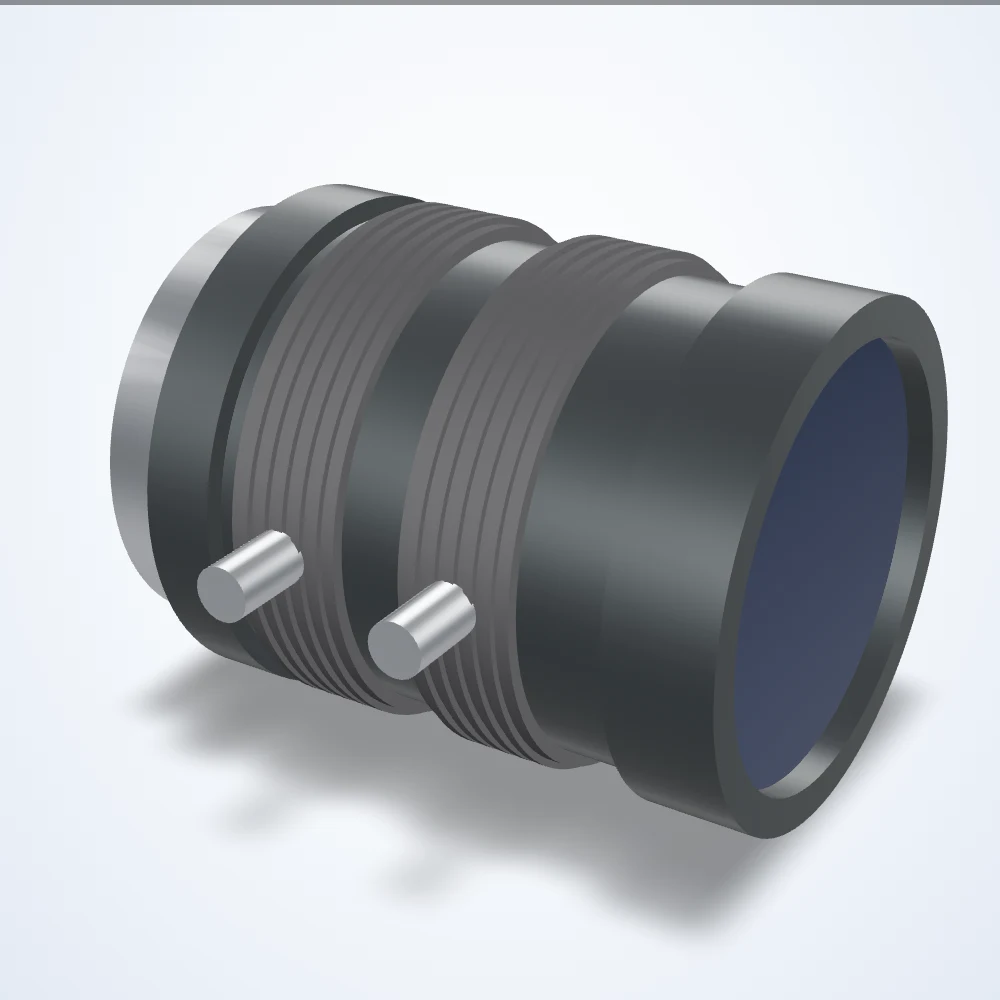

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
9 mm lens, 2/3", C-mount (LS-FFL-0126)
Model LS-FFL-0126
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0126 |
|---|---|
| Focal length (mm) | 9 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | F1.4-F16 |
| Distortion | -2.00% (TV) |
| Operating temperature | -10 to +50 C |
| 1" | Not Compatible |
| 1.1" | Not Compatible |
| 1/1.2" | Not Compatible |
| 1/1.8" | Compatible |
| 1/2" | Compatible |
| 2/3" | Compatible |
| 4/3" | Not Compatible |
| Angle of view (h x v) | 53.3° x 40.5° (2/3") |
| Angle of view [deg] | 53.3 x 40.5 (2/3") |
| Back focal distance (in air) | 13.48 mm |
| Dimension | Ø29.5 x 35 mm |
| Dimension [mm] (diameter x length) | 29.5 x 35 |
| Dimensions (dia. x length, mm) | 29.5 x 35 |
| Distance between principal points | 21.21 mm |
| Exit pupil position (from image plane) | -28.33 mm |
| Exit pupil position (from image plane) [mm] | -28.33 |
| Filter thread | M27 x 0.5 |
| Flange back | 17.526 mm |
| Focal length [mm] | 9 (9.23) |
| Front principal point (from mount) | -12.91 mm |
| Front principle point (from mount) | -12.91 |
| Iris range (f-number) | F1.4-F16 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Operation temperature | -10 to 50 °C |
| Rear principal point (from mount) | 8.30 mm |
| Rear principle point (from mount) | 8.30 |
| Relative illumination (full open, diagonal) | 32 |
| Sensor size (max) | 2/3" |
| Tv distortion [%] | -2.00 |
| Weight [g] | 55 |
| Working distance (from front of lens barrel) | ∞ - 100 mm |
| Working distance [mm] (from front of lens barrel) | ∞-100 |
| Weight (g) | 55 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
