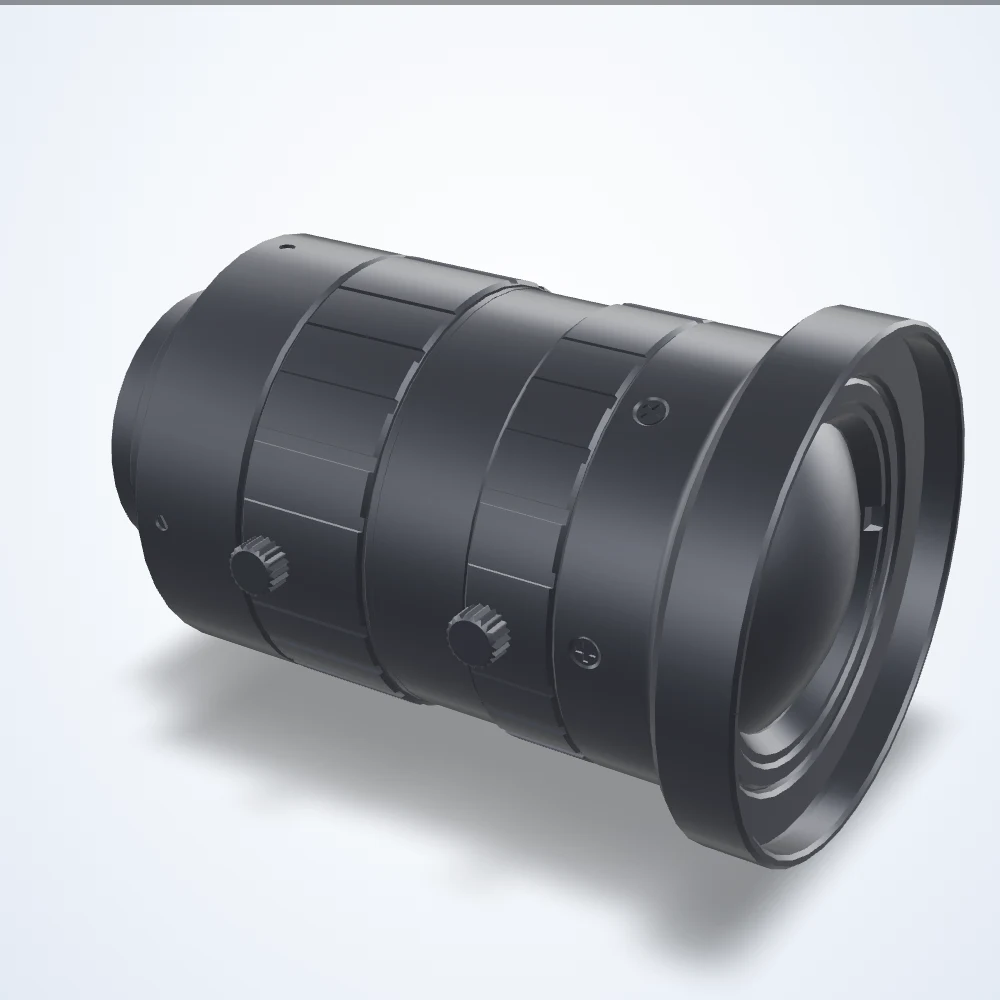

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
6 mm lens, 2/3", C-mount (LS-FFL-0119)
Model LS-FFL-0119
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
Specifications
| Model | LS-FFL-0119 |
|---|---|
| Focal length | 6 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 74.7° x 58.1° |
| Aperture (max) | f/1.9 |
| Back focal length | 12.46 mm |
| Chief ray angle | 6.13° |
| Dimensions | 39 mm × 39 mm × 51 mm |
| Distance between principle points | 42.22 mm |
| Entrance pupil position | -36.27 mm |
| Exit pupil position | -48.71 mm |
| Filter thread | M37.5-0.5 |
| Flange back in air | 17.526 mm |
| Focus control | Manual |
| Front diameter | 39 mm |
| Front principle point | -30.92 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50°C |
| Rear principle point | 11.30 mm |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | -2.88 |
| Weight | 100 Grams |
