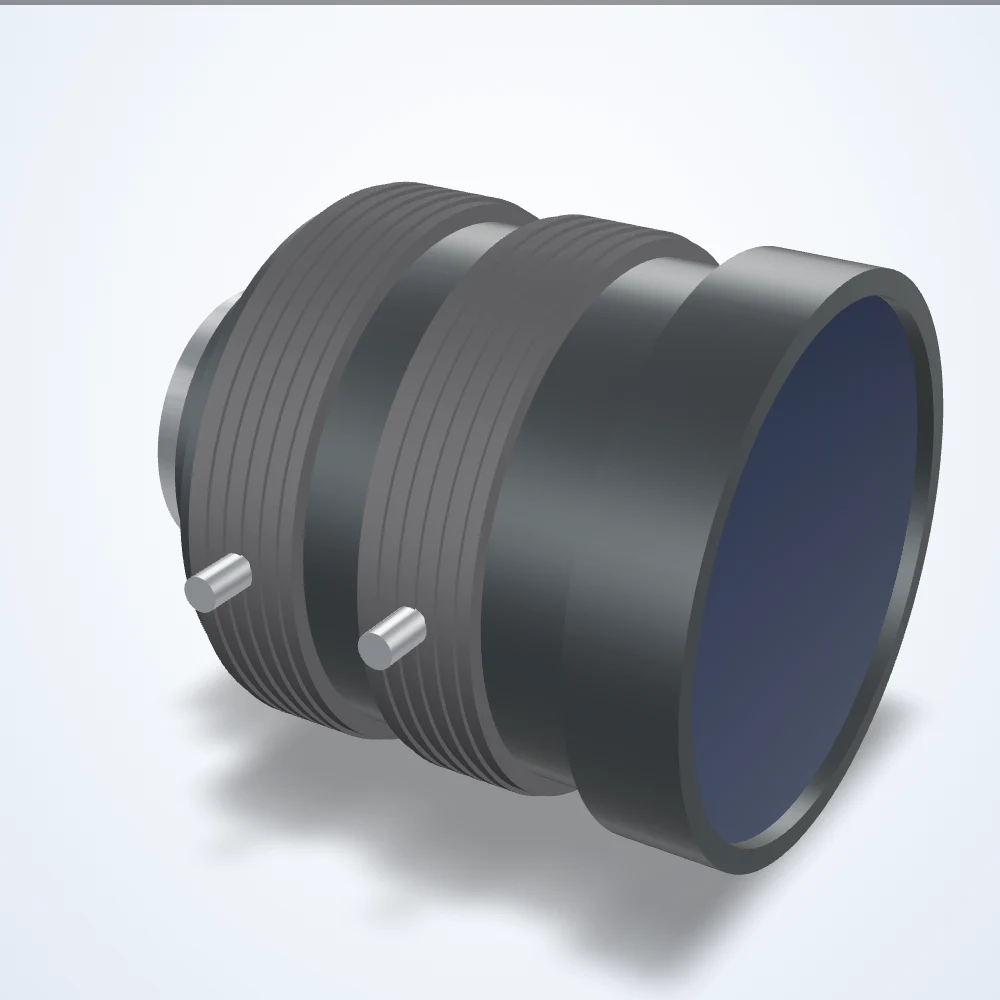

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 2/3", C-mount (LS-FFL-0117)
Model LS-FFL-0117
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0117 |
|---|---|
| Mount | C-mount |
| Angle of view @ 2/3″ | 9.7° x 17.3° |
| Aperture (max) | f/1.8 |
| Back focal distance | 17.81 mm (in air) |
| Back focal length | 17.81 mm |
| Dimensions (dia. x length, mm) | 51 x 55.5 |
| Distance between principle points | -32.32 mm |
| Exit pupil position | -49.93 mm |
| Filter thread | M49x0.75 |
| Flange back in air | 17.526 mm |
| Flange focal distance | 17.526 mm (in air) |
| Focus control | Manual |
| Front diameter | 51 mm |
| Front principle point | -1.87 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Mount protrusion | 4 mm |
| Mount thread | 1-32UNF |
| Operating temperature range | -10 to +50°C |
| Rear principle point | -34.19 mm |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Thumb screw positions from flange | 33.9 mm and 16.7 mm |
| Thumb screw reach from axis | 28.1 mm |
| Tv distortion (%) | 0.08 |
| Sensor format (derived) | 2/3", as named in the product title |
