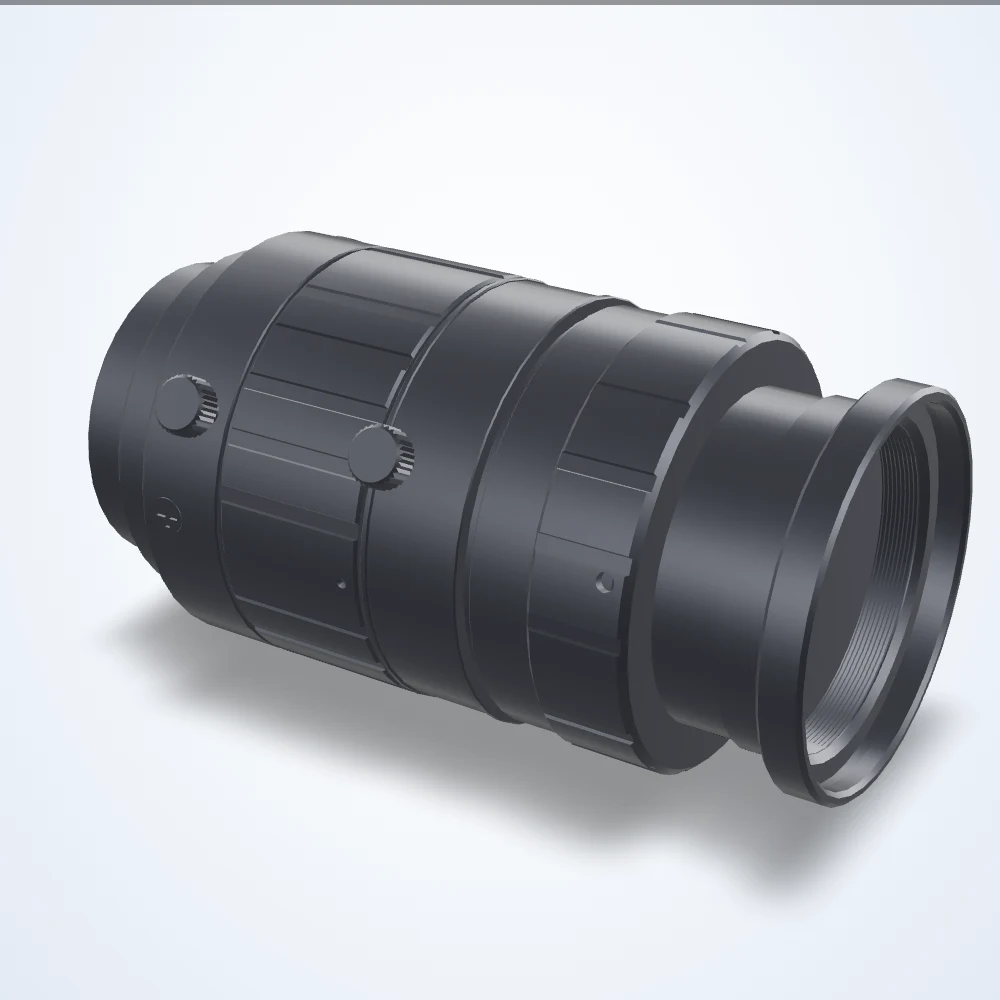

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-mount (LS-FFL-0115)
Model LS-FFL-0115
Machine vision lens for industrial cameras. Minimum object distance 200 mm.
Specifications
| Model | LS-FFL-0115 |
|---|---|
| Focal length | 35 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Minimum object distance | 200 mm |
| Angle of view @ 2/3″ | 14.2° x 10.7° |
| Aperture (max) | f/1.9 |
| Back focal length | 18.50 mm |
| Chief ray angle | 8.33° |
| Dimensions | 29 mm × 29 mm × 41.5 mm |
| Distance between principle points | -11.33 mm |
| Entrance pupil position | -7.78 mm |
| Exit pupil position | -37.19 mm |
| Filter thread | M25.5-0.5 |
| Flange back in air | 17.526 mm |
| Focus control | Manual |
| Front diameter | 29 mm |
| Front principle point | -6.30 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50°C |
| Rear principle point | -17.63 mm |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | 0.1 |
| Weight | 60 Grams |
