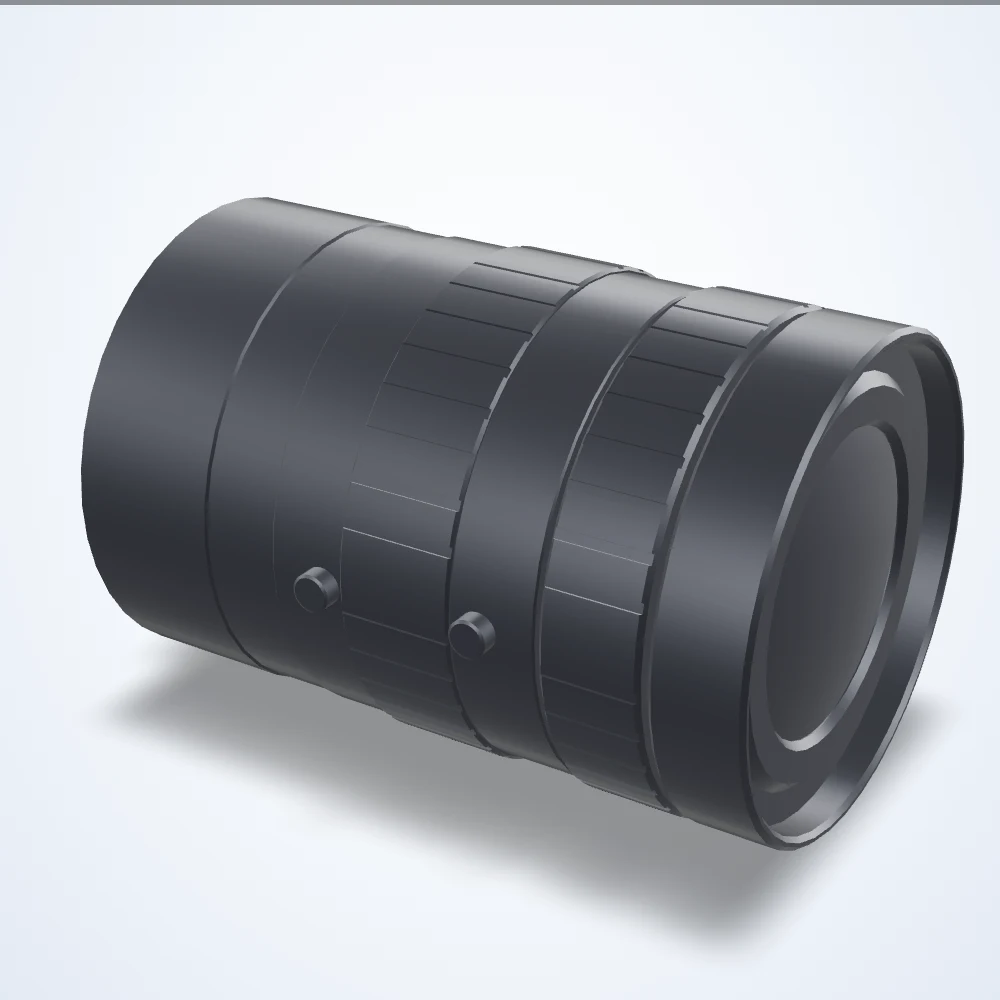

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 2/3", C-mount (LS-FFL-0108)
Model LS-FFL-0108
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
Specifications
| Model | LS-FFL-0108 |
|---|---|
| Focal length | 25 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 20.8° x 15.7° |
| Aperture (max) | f/1.4 |
| Back focal length | 22.32 mm |
| Dimensions | 51 mm × 51 mm × 75.5 mm |
| Distance between principle points | 17.00 mm |
| Exit pupil position | -144.94 mm |
| Filter thread | M49-0.75 |
| Flange back in air | 17.526 mm |
| Focus control | Manual |
| Front diameter | 51 mm |
| Front principle point | -23.47 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50°C |
| Rear principle point | -6.47 mm |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | -0.06 |
| Weight | 315 Grams |
