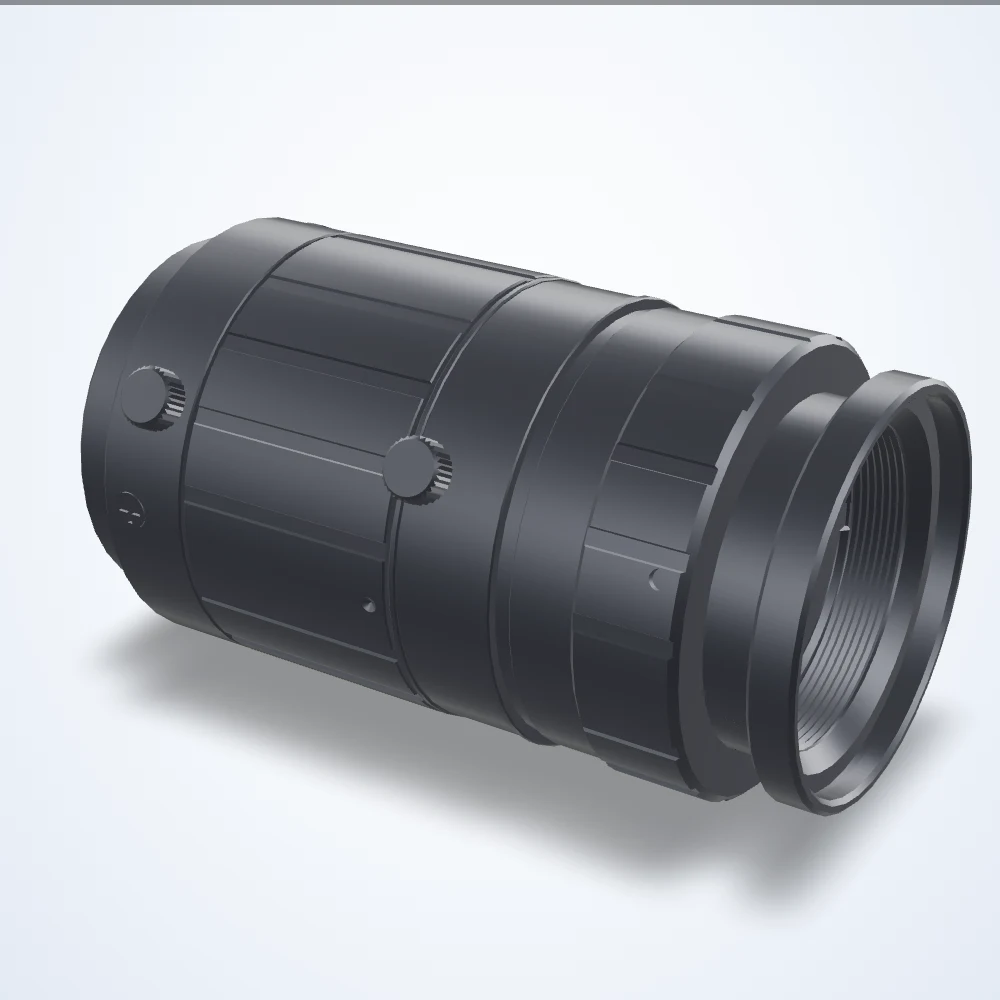

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 2/3", C-mount (LS-FFL-0105)
Model LS-FFL-0105
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
Specifications
| Model | LS-FFL-0105 |
|---|---|
| Focal length | 16 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 31.4° x 23.7° |
| Aperture (max) | f/1.6 |
| Back focal length | 10.66 mm |
| Chief ray angle | 0.96° |
| Dimensions | 29 mm × 29 mm × 46 mm |
| Distance between principle points | 13.98 mm |
| Entrance pupil position | -25.55 mm |
| Exit pupil position | -206.22 mm |
| Filter thread | M25.5-0.5 |
| Flange back in air | 17.526 mm |
| Focus control | Manual |
| Front diameter | 29 mm |
| Front principle point | -12.33 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50°C |
| Rear principle point | 1.65 mm |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | -0.6 |
| Weight | 71 Grams |
