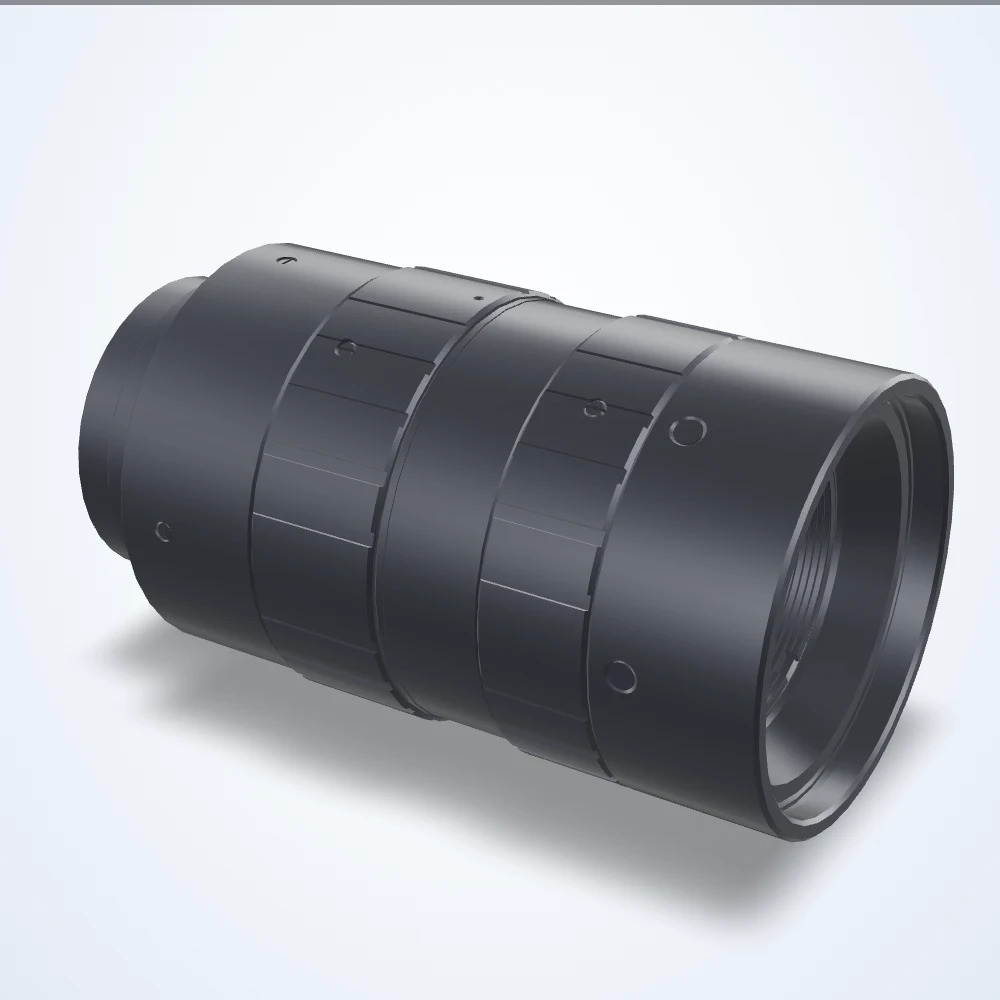

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 2/3", C-mount (LS-FFL-0096)
Model LS-FFL-0096
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
Specifications
| Model | LS-FFL-0096 |
|---|---|
| Focal length | 12 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 39.3° x 30.0° |
| Aperture (max) | f/1.8 |
| Back focal length | 16.16 mm |
| Chief ray angle | 8.34° |
| Dimensions | 33 mm × 33 mm × 52.5 mm |
| Distance between principle points | 26.87 mm |
| Entrance pupil position | -29.41 mm |
| Exit pupil position | -36.75 mm |
| Filter thread | M30.5-0.5 |
| Flange back in air | 17.526 mm |
| Focus control | Manual |
| Front diameter | 33 mm |
| Front principle point | -21.64 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50°C |
| Rear principle point | 5.23 mm |
| Resolution (MP) | 12 |
| Spectrum | Visible |
| Tv distortion (%) | 0.18 |
| Weight | 85 Grams |
