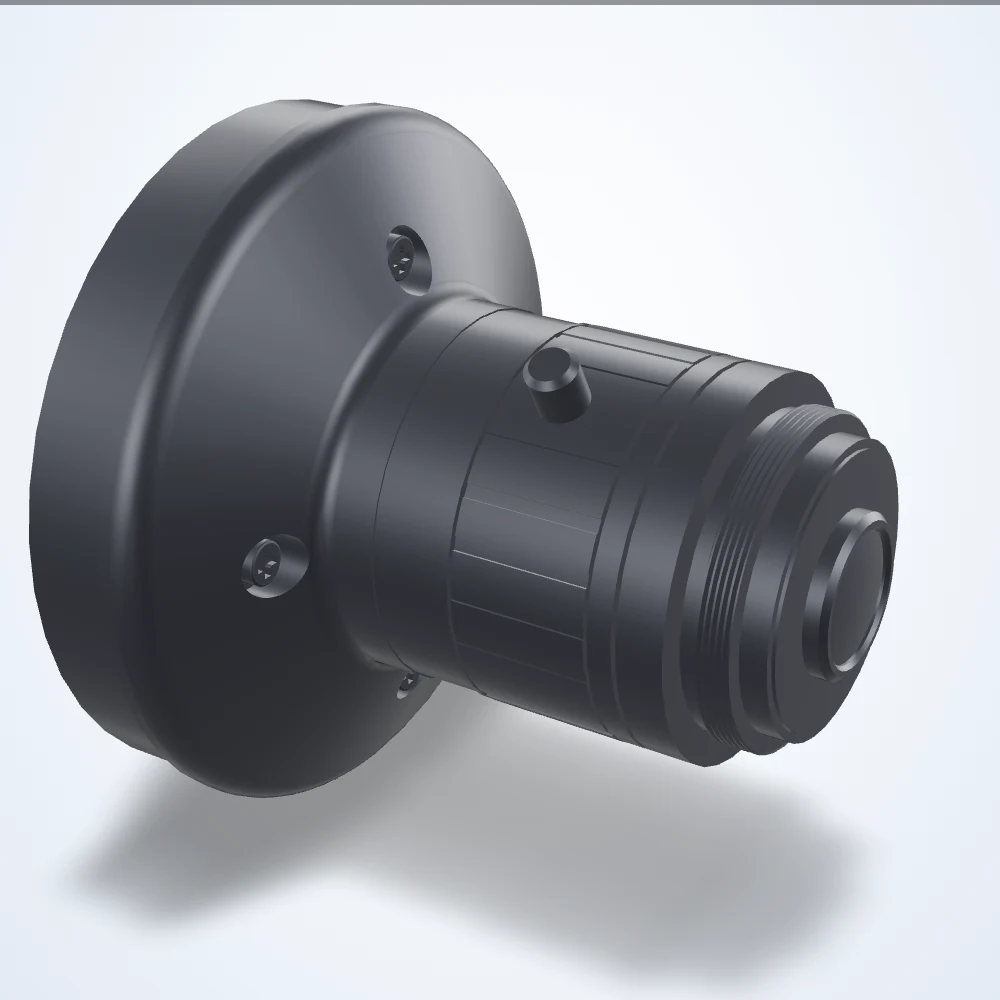

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
1.8 mm lens, 2/3", C-mount (LS-FFL-0094)
Model LS-FFL-0094
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
Specifications
| Model | LS-FFL-0094 |
|---|---|
| Focal length | 1.8 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Minimum object distance | 100 mm |
| 1" | Not Compatible |
| 1.1" | Not Compatible |
| 1/1.2" | Not Compatible |
| 1/1.8" | Compatible |
| 1/2" | Compatible |
| 1/3" | Compatible |
| 2/3" | Compatible |
| 4/3" | Not Compatible |
| Angle of view @ 2/3″ | 185° x 185° |
| Aperture (max) | f/1.4 |
| Back focal length | 9.70 mm |
| Dimensions | 56 mm × 56 mm × 60.3 mm |
| Distance between principle points | 53.30 mm |
| Exit pupil position | -61 mm |
| Filter thread | No Filter Threads |
| Flange back in air | 17.526 mm |
| Focus control | Fixed |
| Front diameter | 56 mm |
| Front principle point | -37.55 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50°C |
| Rear principle point | 15.75 mm |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | -0.8 |
| Weight | 135 Grams |
