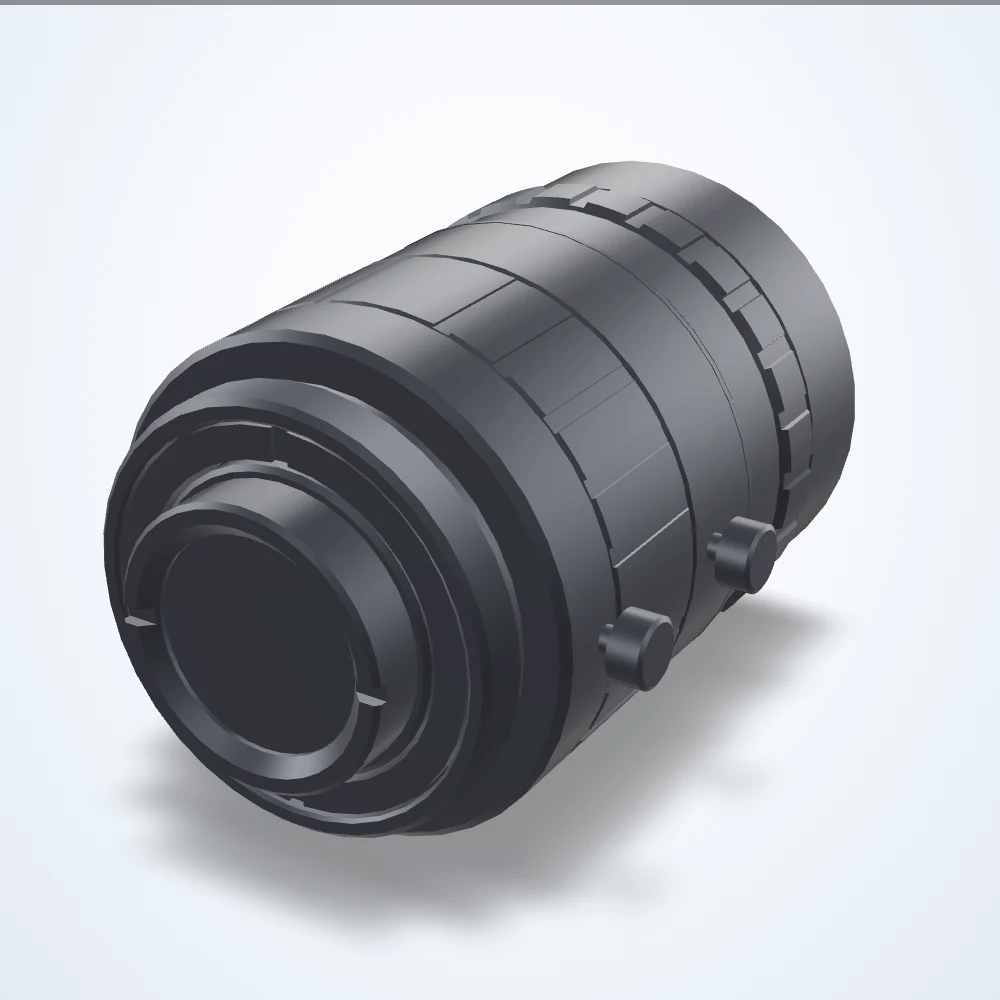

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
6 mm lens, 1/2", C-mount (LS-FFL-0093)
Model LS-FFL-0093
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
Specifications
| Model | LS-FFL-0093 |
|---|---|
| Focal length | 6 mm |
| Sensor format | 1/2" |
| Mount | C-Mount |
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 57.3° x 43.8° |
| Aperture (max) | f/1.2 |
| Back focal length | 11.44 mm |
| Chief ray angle | 3.97° |
| Dimensions | 29 mm × 29 mm × 36.7 mm |
| Distance between principle points | 27.83 mm |
| Entrance pupil position | -21.24 mm |
| Exit pupil position | -49.19 mm |
| Filter thread | M27-0.5 |
| Flange back in air | 17.526 mm |
| Focus control | Manual |
| Front diameter | 29 mm |
| Front principle point | -16.45 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50°C |
| Rear principle point | 11.38 mm |
| Resolution (MP) | 1.5 |
| Spectrum | Visible |
| Tv distortion (%) | -1.84 |
| Weight | 50 Grams |
