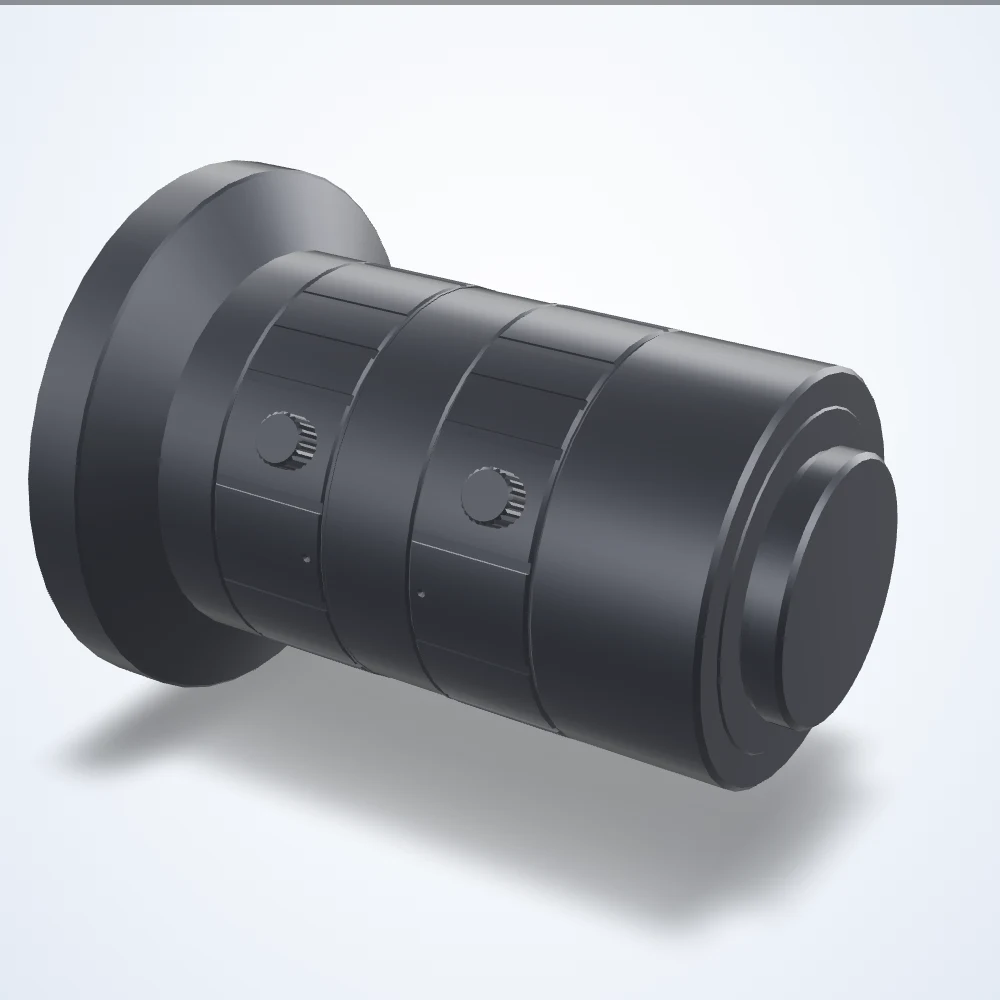

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm lens, 1.1", C-mount (LS-FFL-0092)
Model LS-FFL-0092
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
Specifications
| Model | LS-FFL-0092 |
|---|---|
| Focal length | 8 mm |
| Sensor format | 1.1" |
| Mount | C-Mount |
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 85.7° x 67.5° |
| Aperture (max) | f/1.8 |
| Back focal length | 19.39 mm |
| Chief ray angle | 4.49° |
| Dimensions | 54 mm × 54 mm × 67 mm |
| Distance between principle points | 54.17 mm |
| Entrance pupil position | -52.17 mm |
| Exit pupil position | -93.99 mm |
| Filter thread | M52-0.75 |
| Flange back in air | 17.526 mm |
| Focus control | Manual |
| Front diameter | 54 mm |
| Front principle point | -44.95 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50°C |
| Rear principle point | 9.22 mm |
| Resolution (MP) | 12-23 |
| Spectrum | Visible |
| Tv distortion (%) | -4.81 |
| Weight | 180 Grams |
