Home / Lenses / Machine vision lenses / 75 mm lens, 1", C-Mount

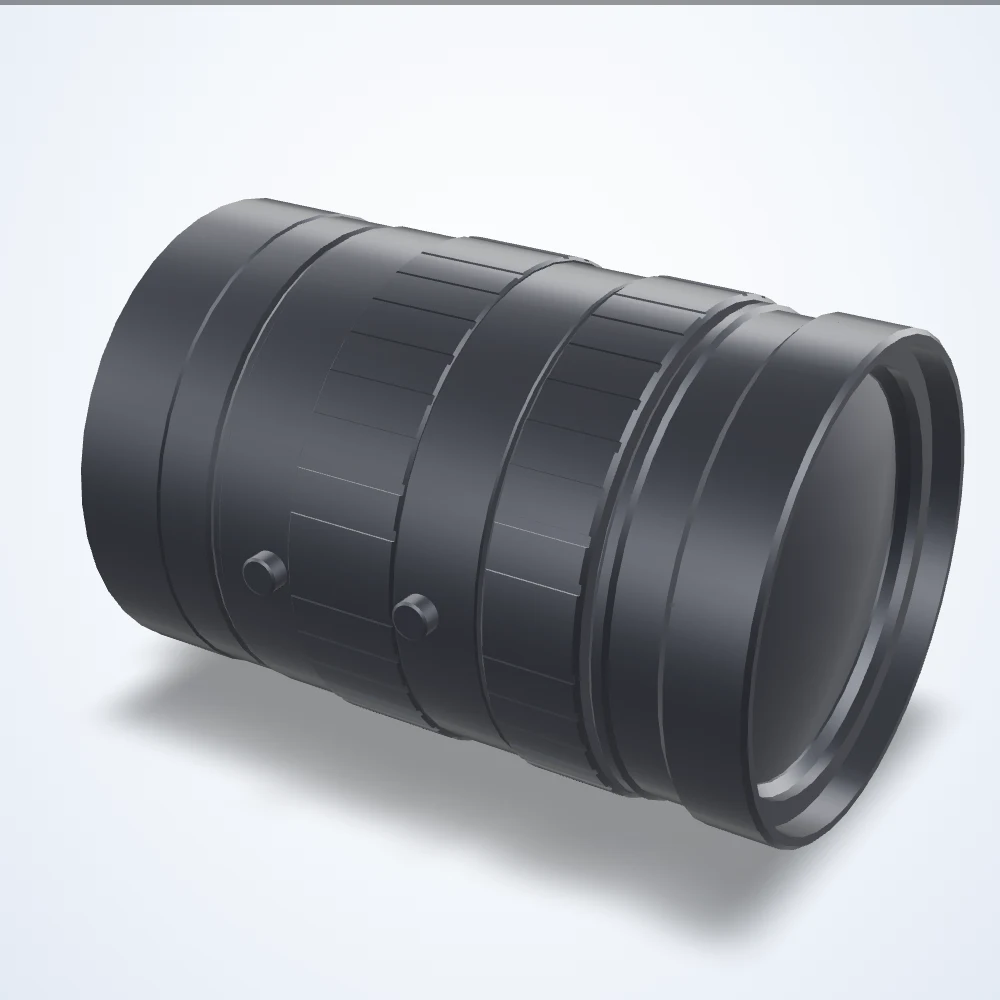

75 mm lens, 1", C-Mount (LS-FFL-0091)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

75 mm lens, 1", C-Mount (LS-FFL-0091)

Model LS-FFL-0091

75 mm lens, 1", C-Mount. Aperture f/1.8 to f/22.

Datasheet (PDF) - LS-FFL-0091 3D model (STEP) - LS-FFL-0091

Specifications

Model	LS-FFL-0091
Filter Thread	M49-0.75
Focal Length	75 mm
Imager Format	1"
Mount	C-Mount
Resolution (MP)	1.5
Resolution (Pixel Size)	7.4 μm
ƒ/N Max	f/1.8
ƒ/N Min	f/22

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
