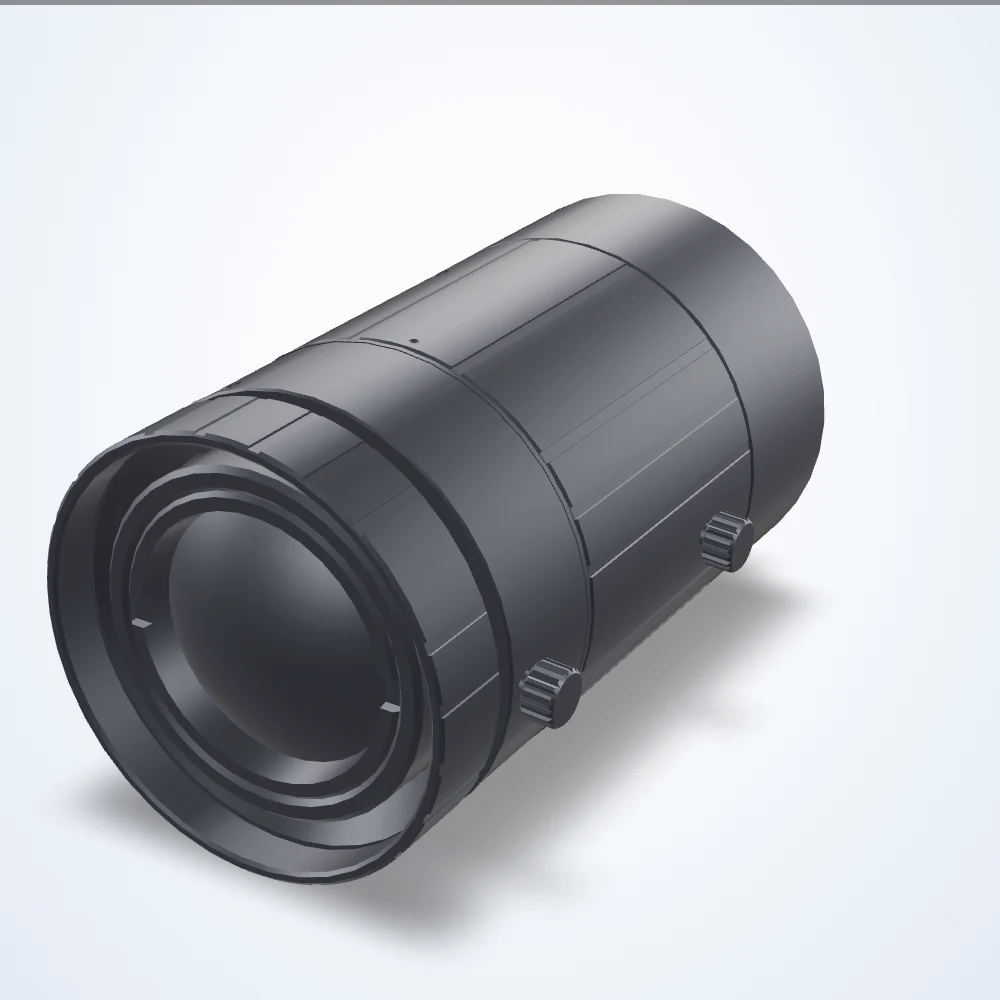

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 1.1", C-mount (LS-FFL-0090)
Model LS-FFL-0090
Machine vision lens for industrial cameras. Minimum object distance 200 mm.
Specifications
| Model | LS-FFL-0090 |
|---|---|
| Focal length | 50 mm |
| Sensor format | 1.1" |
| Mount | C-Mount |
| Minimum object distance | 200 mm |
| Angle of view @ 2/3″ | 16.6° x 12.5° |
| Aperture (max) | f/2.4 |
| Back focal length | 21.18 mm |
| Chief ray angle | 4.84° |
| Dimensions | 39 mm × 39 mm × 68 mm |
| Distance between principle points | -28.43 mm |
| Entrance pupil position | -26.73 mm |
| Exit pupil position | -99.72 mm |
| Filter thread | M37.5-0.5 |
| Flange back in air | 17.526 mm |
| Focus control | Manual |
| Front diameter | 39 mm |
| Front principle point | -2.49 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50°C |
| Rear principle point | -30.92 mm |
| Resolution (MP) | 12-23 |
| Spectrum | Visible |
| Tv distortion (%) | -0.17 |
| Weight | 155 Grams |
