Home / Lenses / Machine vision lenses / 35 mm lens, 1.1", C-Mount

35 mm lens, 1.1", C-Mount (LS-FFL-0088)

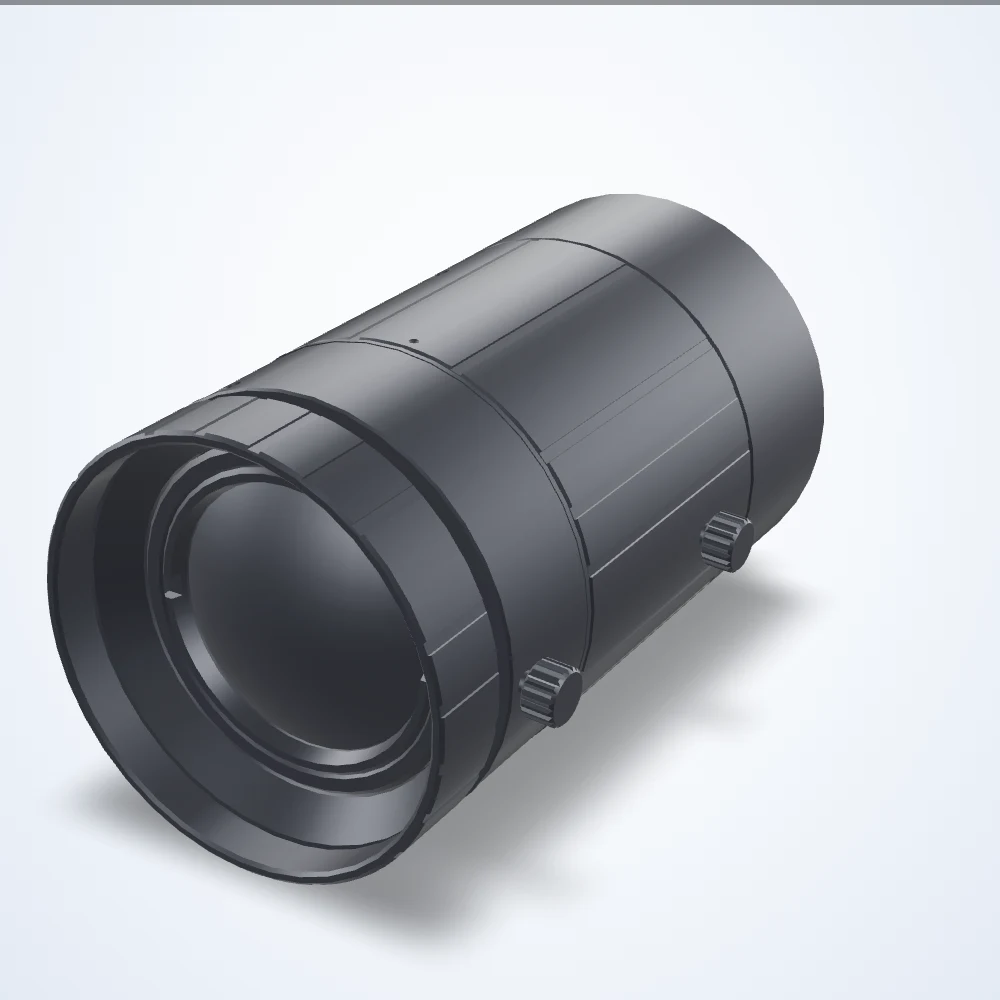

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

35 mm lens, 1.1", C-Mount (LS-FFL-0088)

Model LS-FFL-0088

35 mm lens, 1.1", C-Mount. Aperture f/1.8 to f/16.

3D model (STEP) - LS-FFL-0088

Specifications

Model	LS-FFL-0088
Filter Thread	M37.5-0.5
Focal Length	35 mm
Imager Format	1.1"
Mount	C-Mount
Resolution (MP)	12-23
Resolution (Pixel Size)	2.74 μm
ƒ/N Max	f/1.8
ƒ/N Min	f/16

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
