Home / Lenses / Machine vision lenses / 25 mm lens, 1", C-Mount

25 mm lens, 1", C-Mount (LS-FFL-0085)

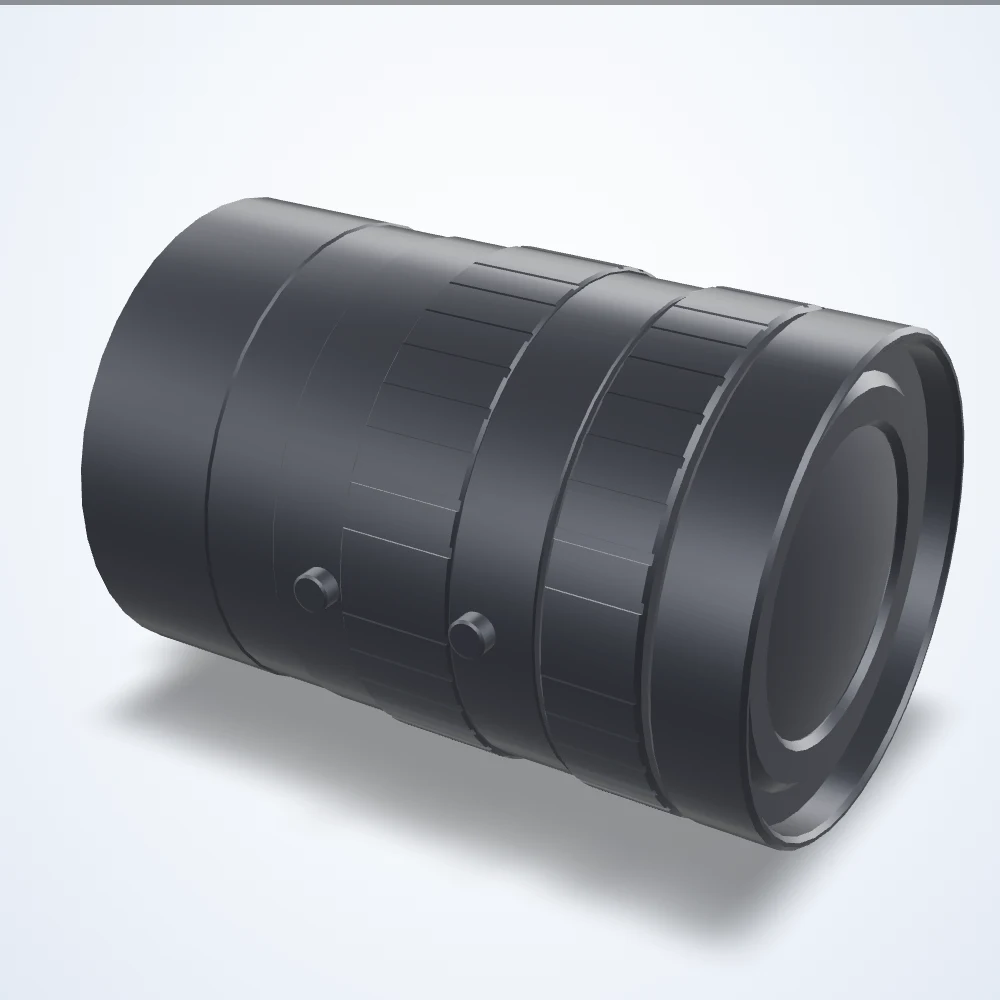

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

25 mm lens, 1", C-Mount (LS-FFL-0085)

Model LS-FFL-0085

25 mm lens, 1", C-Mount. Aperture f/1.4 to f/22.

3D model (STEP) - LS-FFL-0085

Specifications

Model	LS-FFL-0085
Filter Thread	M49-0.75
Focal Length	25 mm
Imager Format	1"
Mount	C-Mount
Resolution (MP)	1.5
Resolution (Pixel Size)	7.4 μm
ƒ/N Max	f/1.4
ƒ/N Min	f/22

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
