Home / Lenses / Machine vision lenses / 16 mm lens, 1.1", C-Mount

16 mm lens, 1.1", C-Mount (LS-FFL-0084)

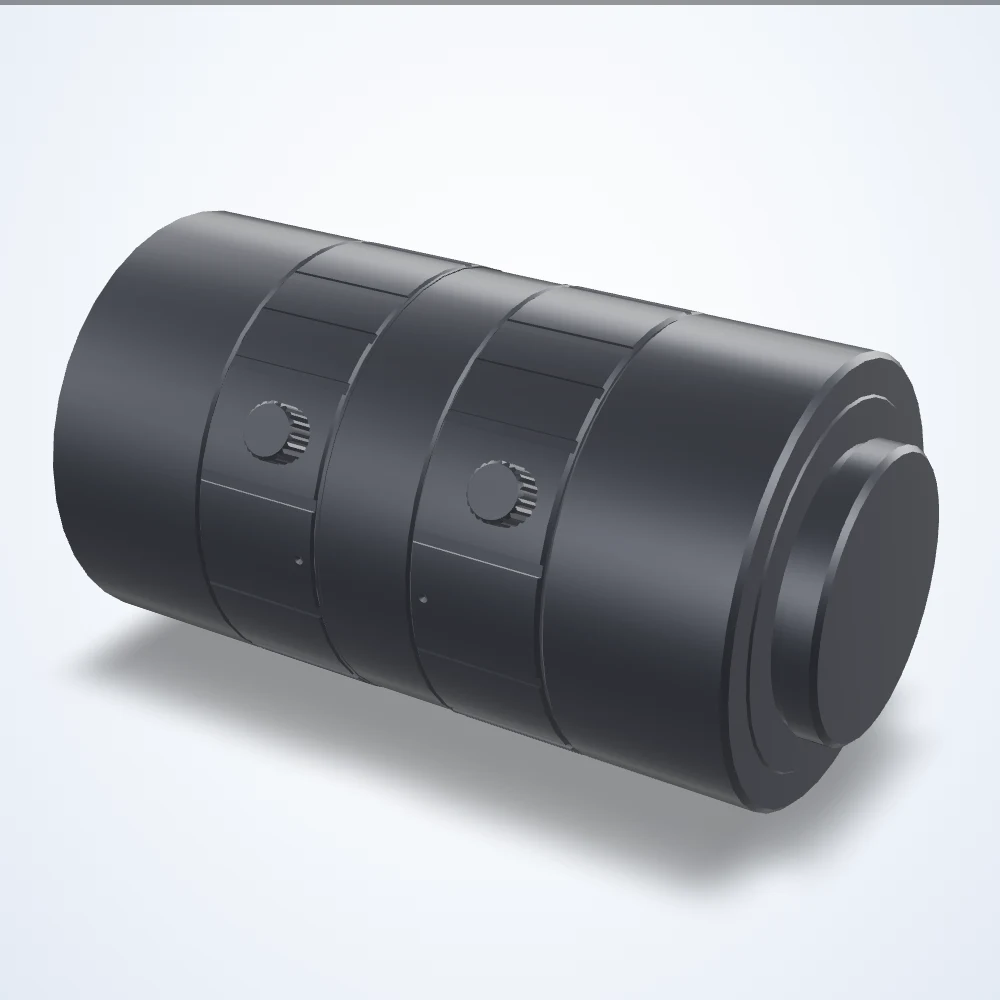

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

16 mm lens, 1.1", C-Mount (LS-FFL-0084)

Model LS-FFL-0084

16 mm lens, 1.1", C-Mount. Aperture f/1.8 to f/16.

Datasheet (PDF) - LS-FFL-0084 3D model (STEP) - LS-FFL-0084

Specifications

Model	LS-FFL-0084
Filter Thread	M37.5-0.5
Focal Length	16 mm
Imager Format	1.1"
Mount	C-Mount
Resolution (MP)	12-23
Resolution (Pixel Size)	2.74 μm
ƒ/N Max	f/1.8
ƒ/N Min	f/16
