Machine vision lenses

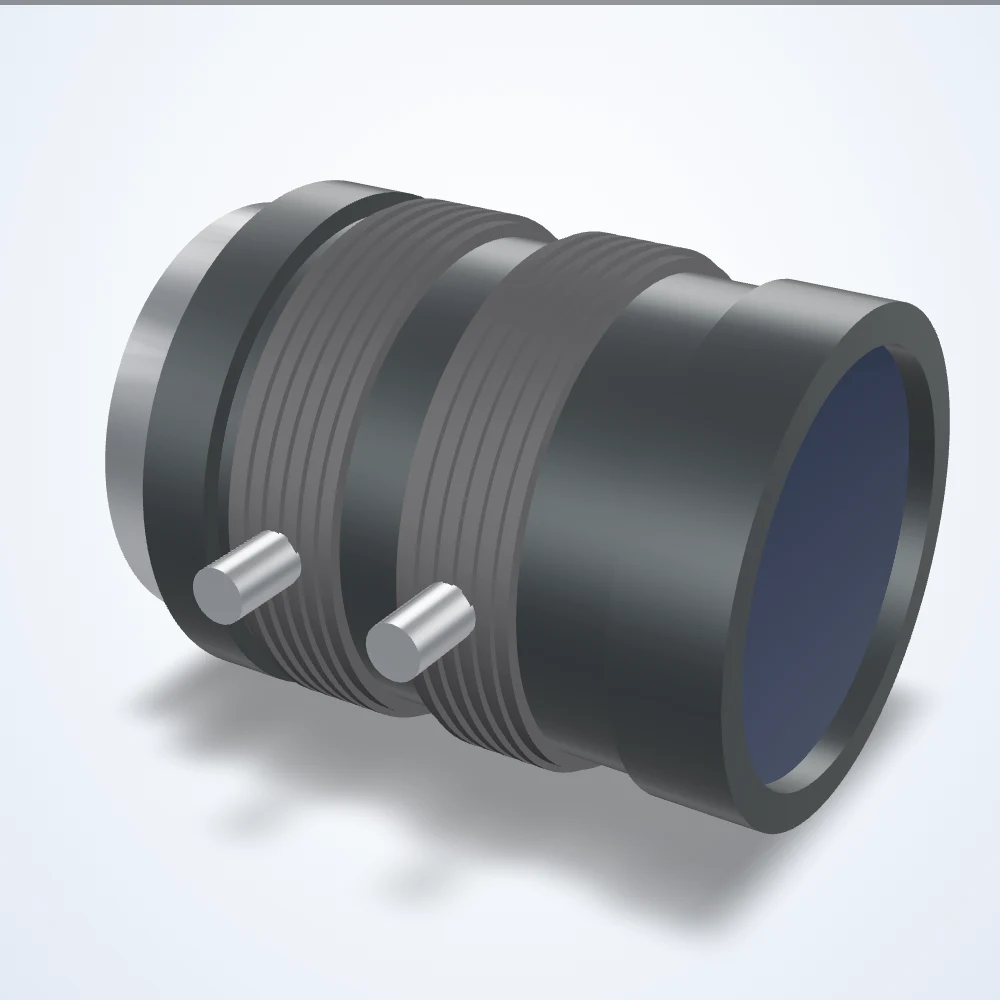

9 mm lens, 2/3", C-mount (LS-FFL-0080)
Model LS-FFL-0080
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0080 |
|---|---|
| Mount | C-mount |
| Operating temperature | -10 to +50 C |
| 1" | Not Compatible |
| 1.1" | Not Compatible |
| 1/1.2" | Not Compatible |
| 1/1.8" | Compatible |
| 1/2" | Compatible |
| 2/3" | Compatible |
| 4/3" | Not Compatible |
| Angle of view [deg] | 53.3 x 40.5 (2/3") |
| Aperture (max) | f/1.4 |
| Back focal distance | 13.48 mm (in air) |
| Dimension [mm] (diameter x length) | 29.5 x 35 |
| Dimensions (dia. x length, mm) | 29.5 x 35 |
| Distance between principal points | 21.21 |
| Exit pupil position (from image plane) [mm] | -28.33 |
| Filter thread | M27.0x0.5 |
| Flange back (mm) | 17.5 |
| Flange focal distance | 17.526 mm (in air) |
| Flange to thumb screw | 3.8 mm |
| Focal length [mm] | 9 (9.23) |
| Front diameter | 29 mm |
| Front principle point (from mount) | -12.91 |
| Iris range (f-number) | F1.4-F16 |
| Lens type | Fixed Focal Length |
| Mount protrusion | 4 mm |
| Mount thread | 1-32UNF |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Rear lens barrel diameter | Ø16.50 |
| Rear principle point (from mount) | 8.30 |
| Rear protrusion behind flange | 5.2 mm at infinity |
| Rear section length | 16 mm |
| Relative illumination (fully open aperture) | 32 |
| Resolution (MP) | 1.5 |
| Sensor size (max) | 2/3" |
| Specifications | HF9HA-1B |
| Spectrum | Visible |
| Thumb screw reach from axis | 17.80 mm each side |
| Tv distortion [%] | -2.00 |
| Weight [g] | 55 |
| Working distance [mm] (from front of lens barrel) | ∞-100 |
