Home / Lenses / Machine vision lenses / 75 mm lens, 2/3", C-Mount

75 mm lens, 2/3", C-Mount (LS-FFL-0079)

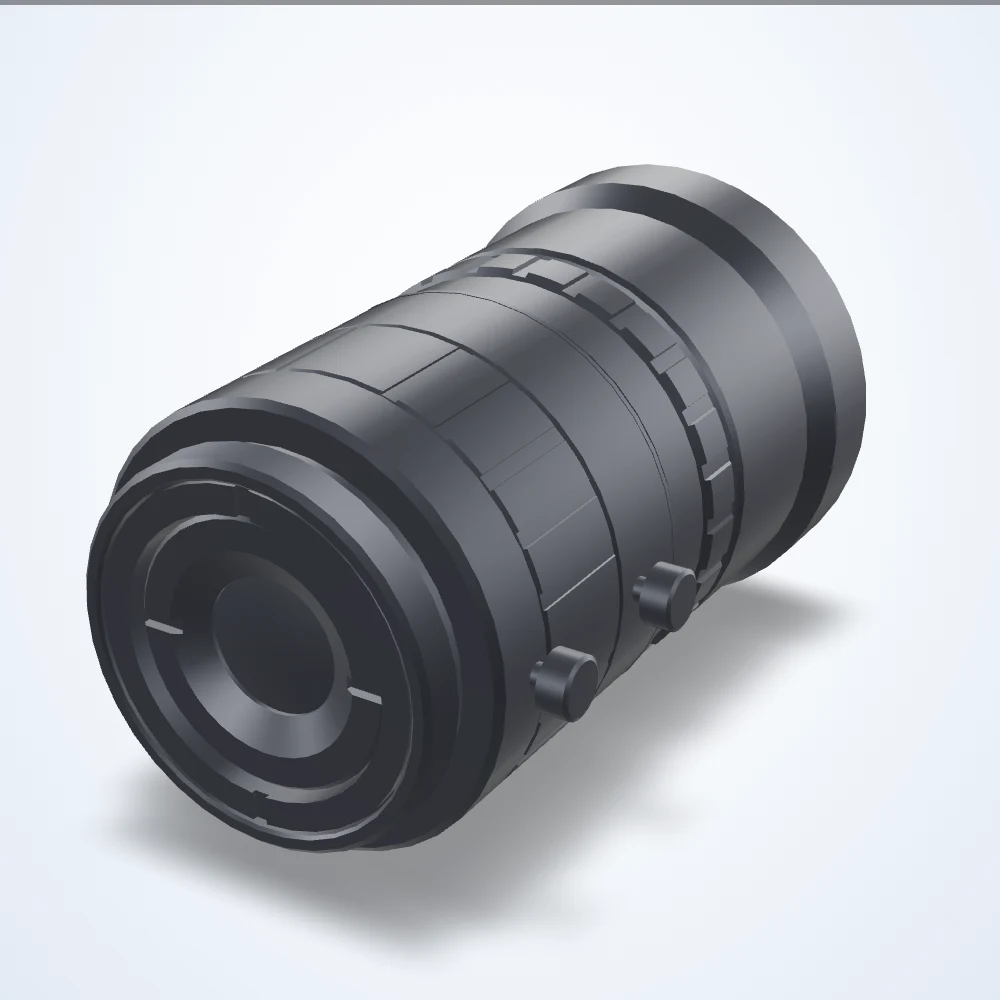

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

75 mm lens, 2/3", C-Mount (LS-FFL-0079)

Model LS-FFL-0079

75 mm lens, 2/3", C-Mount. Minimum object distance 100 mm. Aperture f/2.8 to f/22.

3D model (STEP) - LS-FFL-0079

Specifications

Model	LS-FFL-0079
Filter Thread	M30.5-0.5
Focal Length	75 mm
Front Diameter	31 mm
Imager Format	2/3"
Lens Type	Fixed Focal Length
Light Spectrum	Visible
Minimum Object Distance	100 mm
Mount	C-Mount
Resolution (MP)	1.5
Resolution (Pixel Size)	6.2 μm
Weight	50 Grams
ƒ/N Max	f/2.8
ƒ/N Min	f/22

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
