25 mm lens, 2/3", C-Mount (LS-FFL-0076)

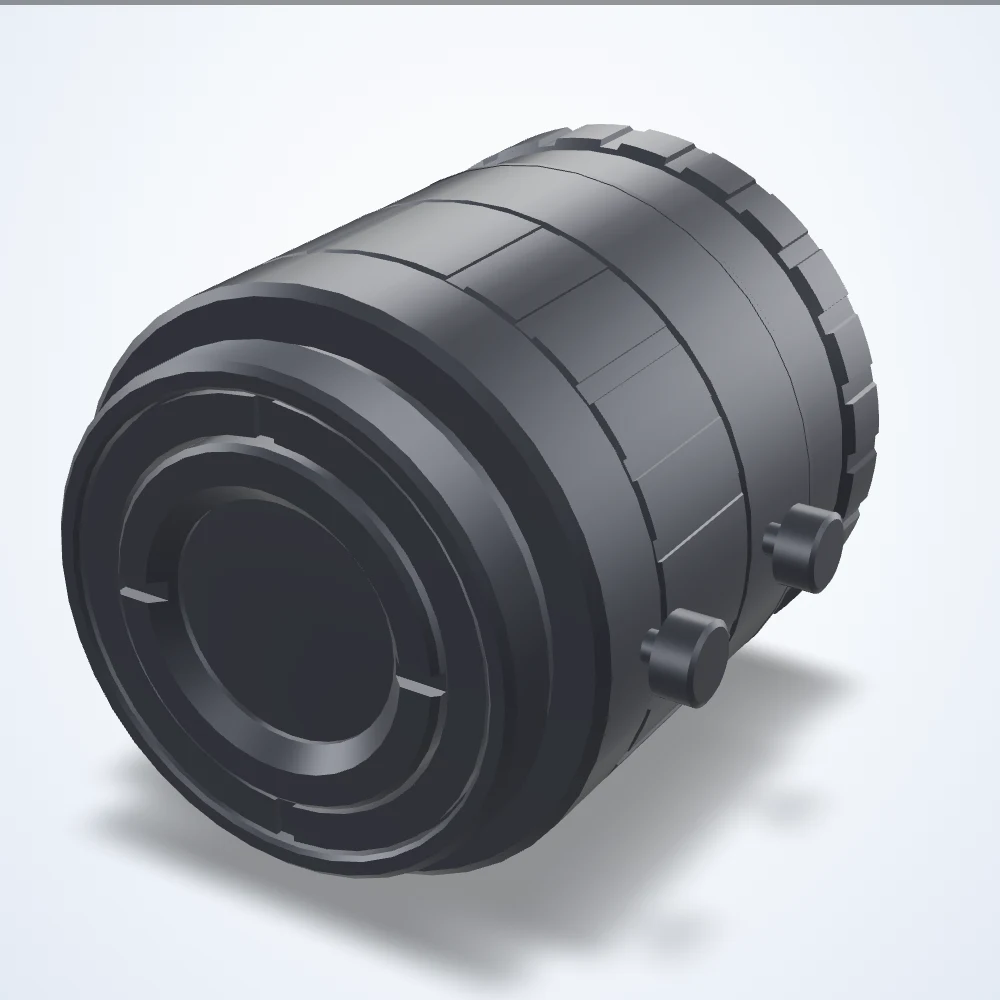

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

25 mm lens, 2/3", C-Mount (LS-FFL-0076)

Model LS-FFL-0076

25 mm lens, 2/3", C-Mount. Minimum object distance 150 mm. Aperture f/1.4 to f/16.

Datasheet (PDF) - LS-FFL-0076 3D model (STEP) - LS-FFL-0076

Specifications

Model	LS-FFL-0076
Filter Thread	M25.5-0.5
Focal Length	25 mm
Front Diameter	29 mm
Imager Format	2/3"
Lens Type	Fixed Focal Length
Light Spectrum	Visible
Minimum Object Distance	150 mm
Mount	C-Mount
Resolution (MP)	1.5
Resolution (Pixel Size)	6.2 μm
Weight	40 Grams
ƒ/N Max	f/1.4
ƒ/N Min	f/16

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
