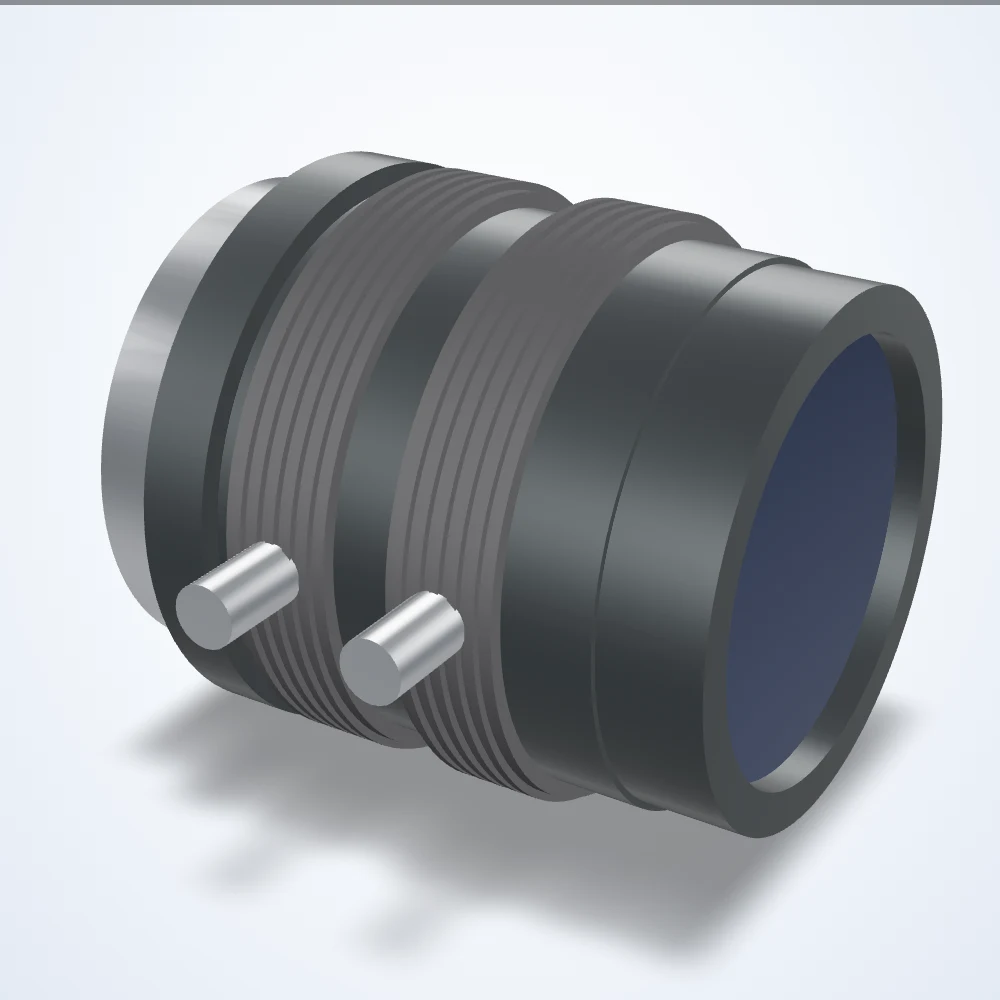

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 2/3", C-Mount (LS-FFL-0075)
Model LS-FFL-0075
16 mm lens, 2/3", C-Mount. Minimum object distance 100 mm. Aperture f/1.4 to f/16.
Specifications
| Model | LS-FFL-0075 |
|---|---|
| Front Diameter | 29 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (MP) | 1.5 |
| Resolution (Pixel Size) | 6.2 μm |
| Mount | C |
| Dimensions (dia. x length, mm) | 29.5 x 29.2 |
| Filter thread | M25.5x0.5 |
| Flange focal distance | 17.526 mm (in air) |
| Back focal distance | 15.15 mm (in air) |
| Mount thread | 1-32UNF |
| Thumb screw reach from axis | 17.80 mm each side |
| Flange to thumb screw | 3.80 mm |
| Mount protrusion | 4 mm |
| Rear section length | 16 mm |
| Sensor format (derived) | 2/3", as named in the product title |
