Home / Lenses / Machine vision lenses / 12.5 mm lens, 2/3", C-mount

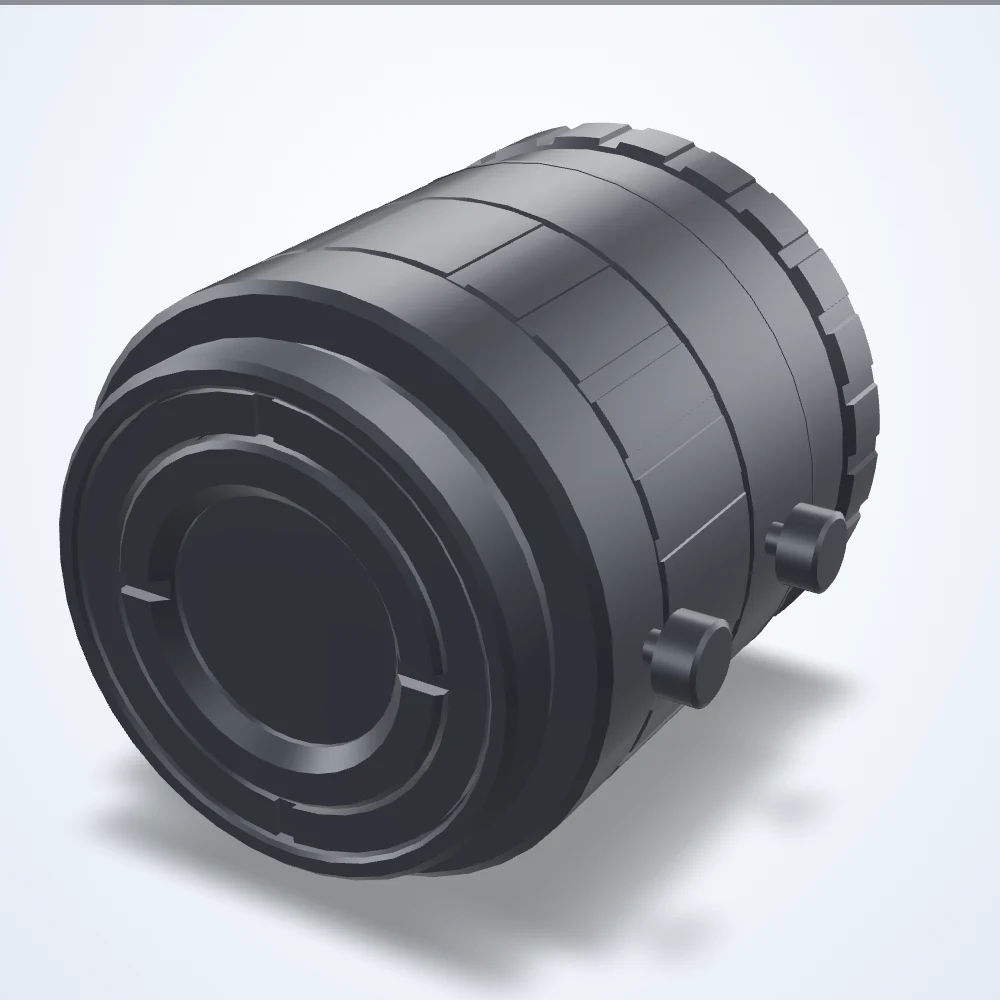

12.5 mm lens, 2/3", C-mount (LS-FFL-0074)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

12.5 mm lens, 2/3", C-mount (LS-FFL-0074)

Model LS-FFL-0074

Machine vision lens for industrial cameras. Minimum object distance 100 mm.

Datasheet (PDF) - LS-FFL-0074 3D model (STEP) - LS-FFL-0074

Specifications

Model	LS-FFL-0074
Focal length	12.5 mm
Sensor format	2/3"
Mount	C-Mount
Minimum object distance	100 mm
Aperture (max)	f/1.4
Filter thread	M25.5-0.5
Front diameter	29 mm
Lens type	Fixed Focal Length
Resolution (MP)	1.5
Spectrum	Visible
Weight	40 Grams

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
