Home / Lenses / Machine vision lenses / 6 mm lens, 1/2", C-mount

6 mm lens, 1/2", C-mount (LS-FFL-0073)

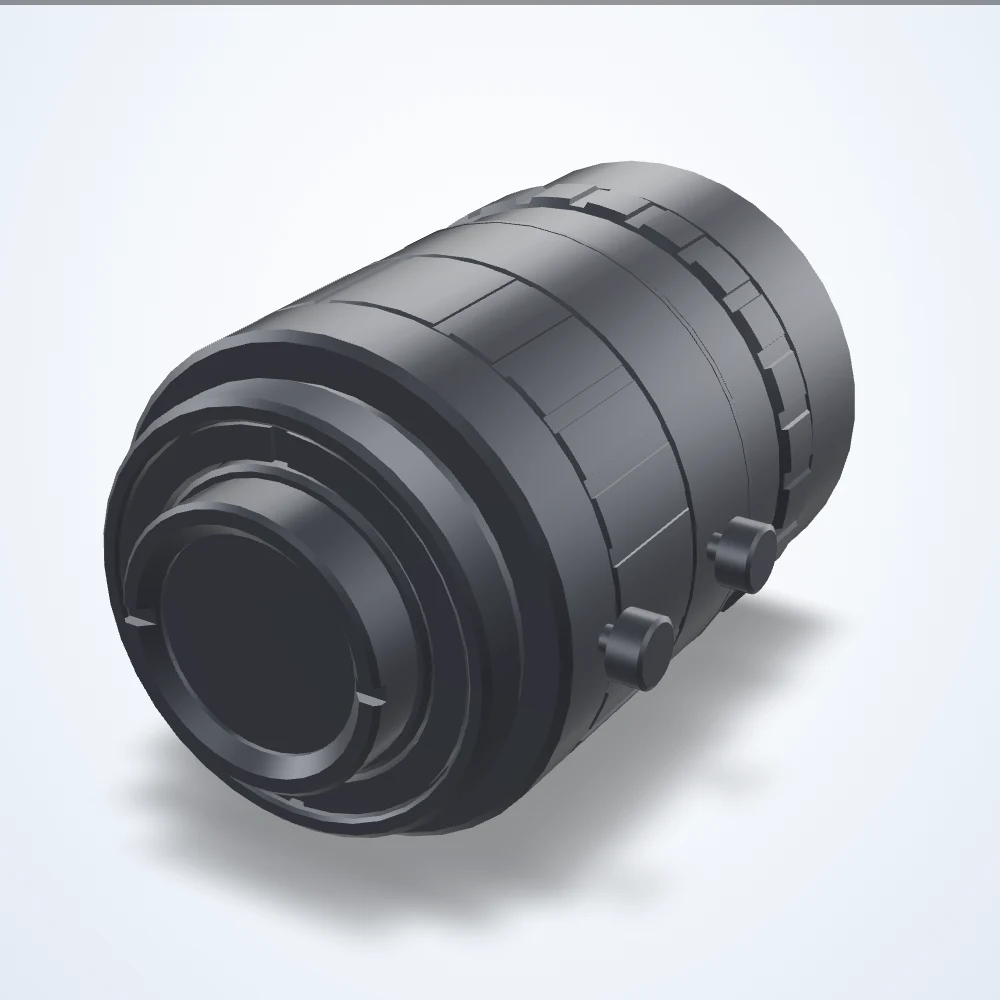

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

6 mm lens, 1/2", C-mount (LS-FFL-0073)

Model LS-FFL-0073

Machine vision lens for industrial cameras. Minimum object distance 100 mm.

Datasheet (PDF) - LS-FFL-0073 3D model (STEP) - LS-FFL-0073

Specifications

Model	LS-FFL-0073
Focal length	6 mm
Sensor format	1/2"
Mount	C-Mount
Minimum object distance	100 mm
Aperture (max)	f/1.2
Filter thread	M27-0.5
Front diameter	29 mm
Lens type	Fixed Focal Length
Resolution (MP)	1.5
Spectrum	Visible
Weight	50 Grams

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide
