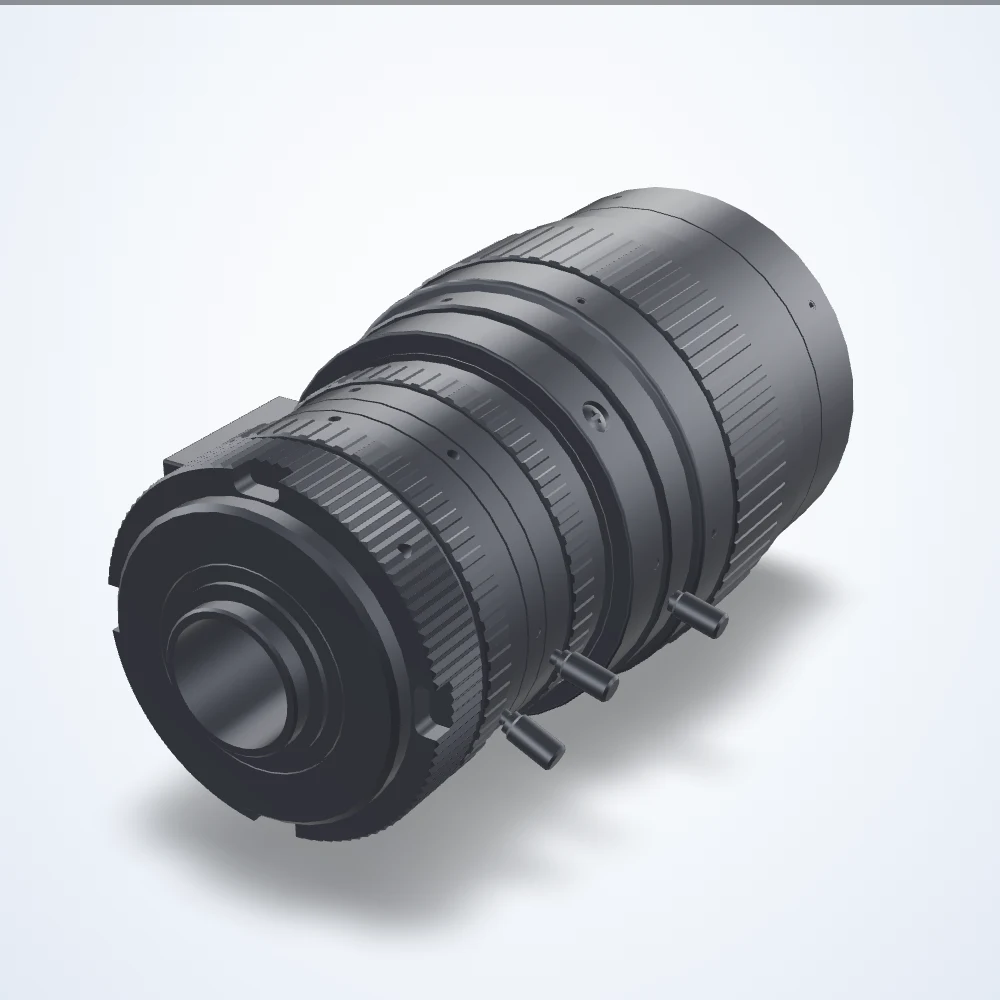

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
0.07 - 0.5× lens, 1.1", C-mount (LS-FFL-0070)
Model LS-FFL-0070
Machine vision lens for industrial cameras. Minimum object distance 182 mm.
Specifications
| Model | LS-FFL-0070 |
|---|---|
| Magnification | 0.07 - 0.5× |
| Sensor format | 1.1" |
| Mount | C-Mount |
| Minimum object distance | 182 mm |
| Aperture (max) | f/4.3 |
| Back focal length | 39.53 mm |
| Dimensions | 61 × 61 × 152.86 mm |
| Filter thread | M72-0.75 |
| Focus control | Manual |
| Focus range | 182 m - 577.2 m |
| Iris control | Manual |
| Lens type | Macro |
| Operating temperature range | -10 to +50 °C |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | 1.7 |
| Zoom control | Manual |
| Weight | 1400 |
