Home / Lenses / Machine vision lenses / 50 mm lens, 1", C-Mount

50 mm lens, 1", C-Mount (LS-FFL-0058)

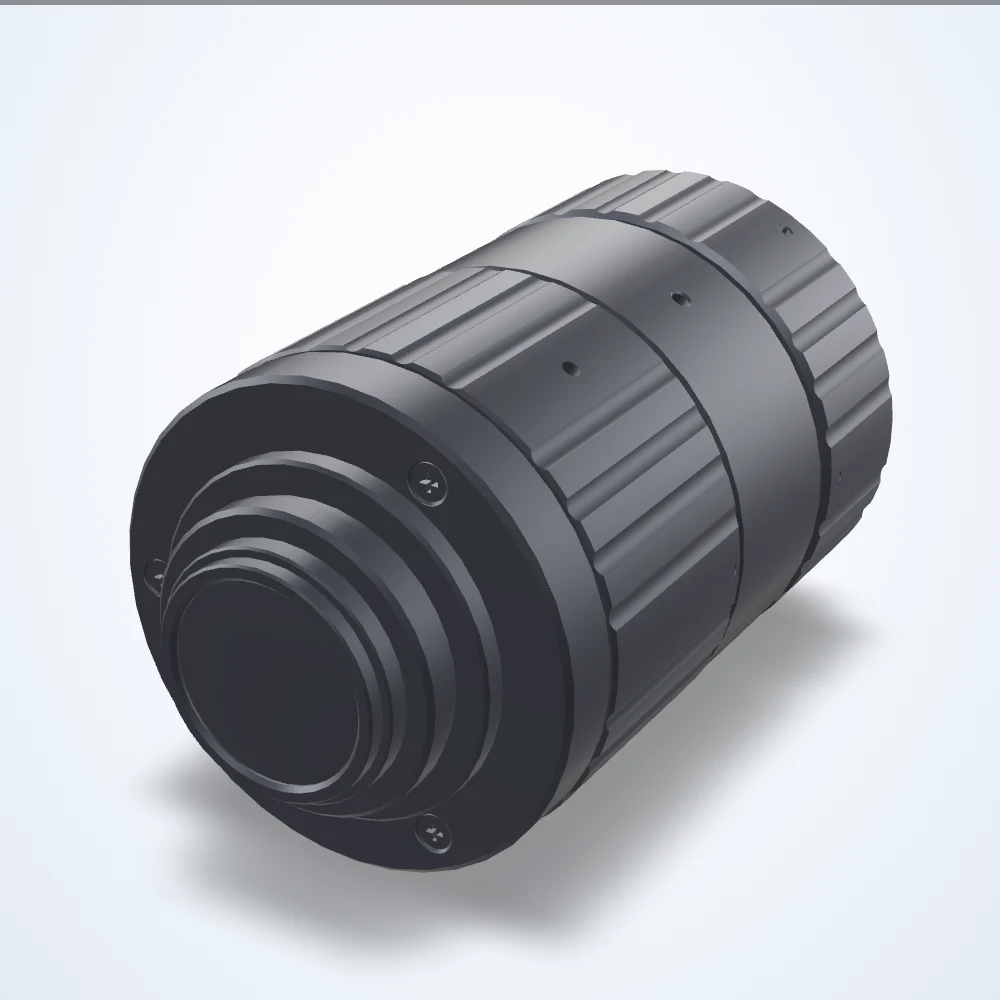

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

50 mm lens, 1", C-Mount (LS-FFL-0058)

Model LS-FFL-0058

50 mm lens, 1", C-Mount. Minimum object distance 200 mm. Aperture f/2.4 to f/16.

Datasheet (PDF) - LS-FFL-0058 3D model (STEP) - LS-FFL-0058

Specifications

Model	LS-FFL-0058
Filter Thread	M30.5-0.5
Focal Length	50 mm
Focus Range	0.2 m - ∞
Front Diameter	21.8 mm
Image Circle Diameter	16 mm
Image Size Dimensions	12.8 mm x 9.6 mm
Imager Format	1"
Lens Type	Fixed Focal Length
Light Spectrum	Visible
Minimum Object Distance	200 mm
Mount	C-Mount
Resolution (MP)	20
ƒ/N Max	f/2.4
ƒ/N Min	f/16

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
