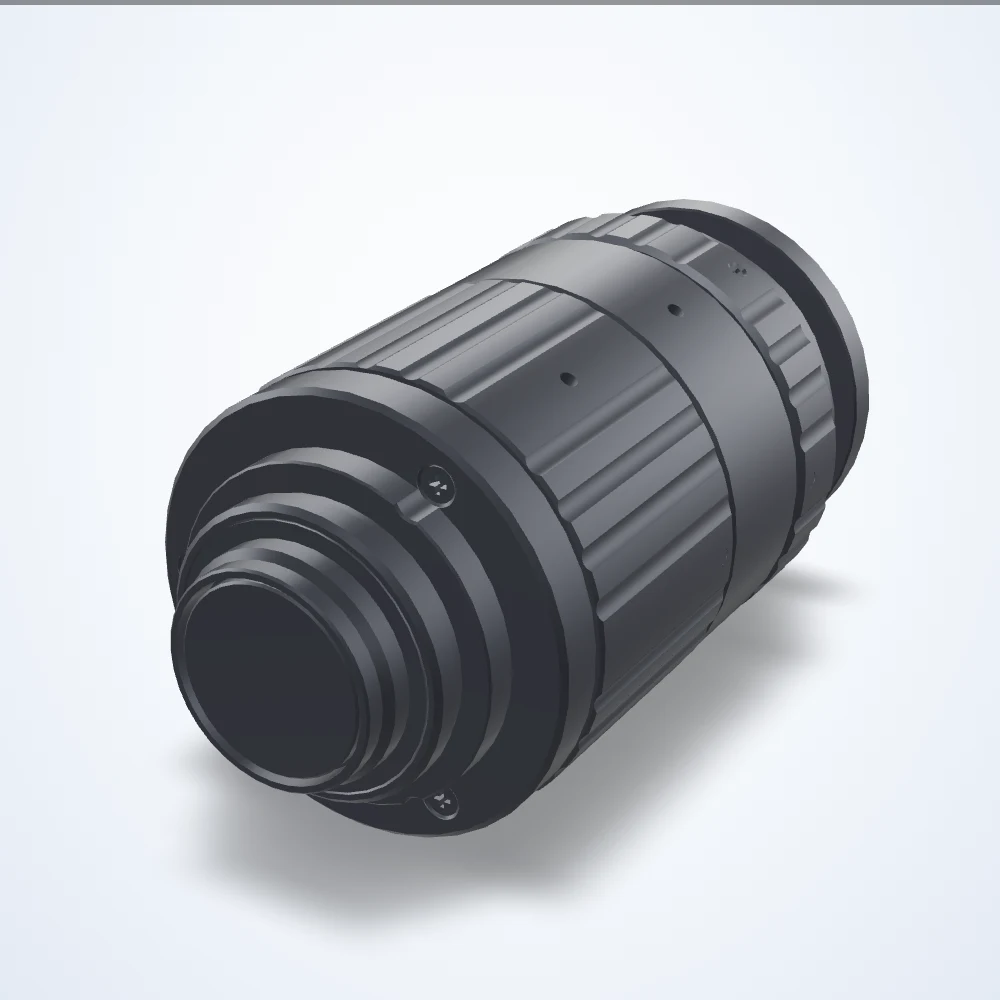

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 1", C-mount (LS-FFL-0056)
Model LS-FFL-0056
Machine vision lens for industrial cameras. Minimum object distance 200 mm.
Specifications
| Model | LS-FFL-0056 |
|---|---|
| Focal length | 35 mm |
| Sensor format | 1" |
| Mount | C-Mount |
| Minimum object distance | 200 mm |
| Aov @ 1/1.8″ h°×v°×d° | 11.8 × 8.9 × 14.7° |
| Aov @ 1″ h°×v°×d° | 20.8 × 15.7 × 25.8° |
| Aov @ 2/3″ h°×v°×d° | 14.4 × 10.8 × 17.9° |
| Aperture (max) | f/2.2 |
| Back focal length | 9.7 mm |
| Dimensions | 39.5 × 39.5 × 55.7 mm |
| Filter thread | M34-0.5 |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Front diameter | 21.5 mm |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 15.6 mm |
| Resolution (MP) | 20 |
| Spectrum | Visible |
| Zoom range | Fixed |
| Weight | 118.2 |
