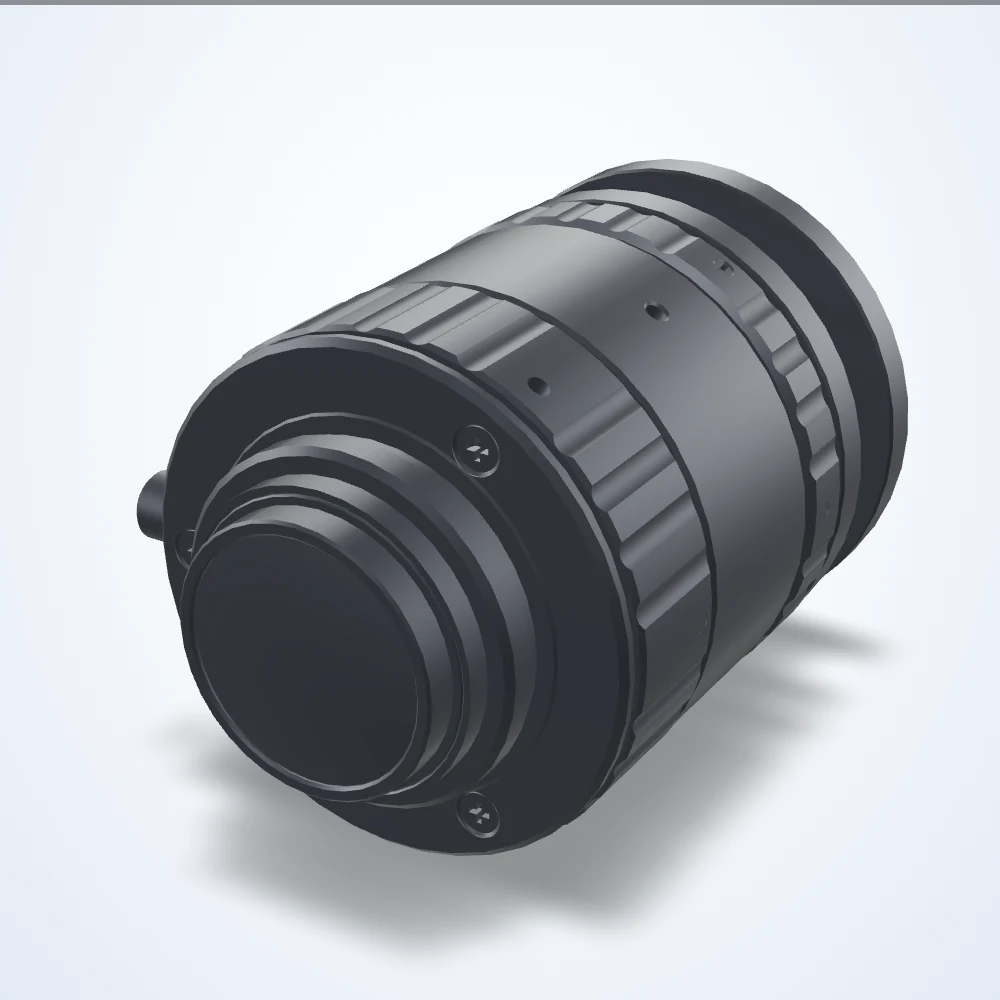

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 1", C-mount (LS-FFL-0053)
Model LS-FFL-0053
Machine vision lens for industrial cameras. Minimum object distance 150 mm.
Specifications
| Model | LS-FFL-0053 |
|---|---|
| Focal length | 25 mm |
| Sensor format | 1" |
| Mount | C-Mount |
| Minimum object distance | 150 mm |
| Aov @ 1/1.8″ h°×v°×d° | 16.4 × 12.4 × 20.5° |
| Aov @ 1″ h°×v°×d° | 28.8 × 21.8 × 35.5° |
| Aov @ 2/3″ h°×v°×d° | 20.0 × 15.1 × 24.9° |
| Aperture (max) | f/2 |
| Back focal length | 9.1 mm |
| Dimensions | 37.5 × 37.5 × 35.7 mm |
| Filter thread | M35.5-0.5 |
| Focus control | Manual |
| Focus range | 0.15 m - ∞ |
| Front diameter | 19.2 mm |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 17.1 mm |
| Resolution (MP) | 20 |
| Spectrum | Visible |
| Zoom range | Fixed |
| Weight | 73.1 |
