Home / Lenses / Machine vision lenses / 12 mm lens, 1", C-Mount

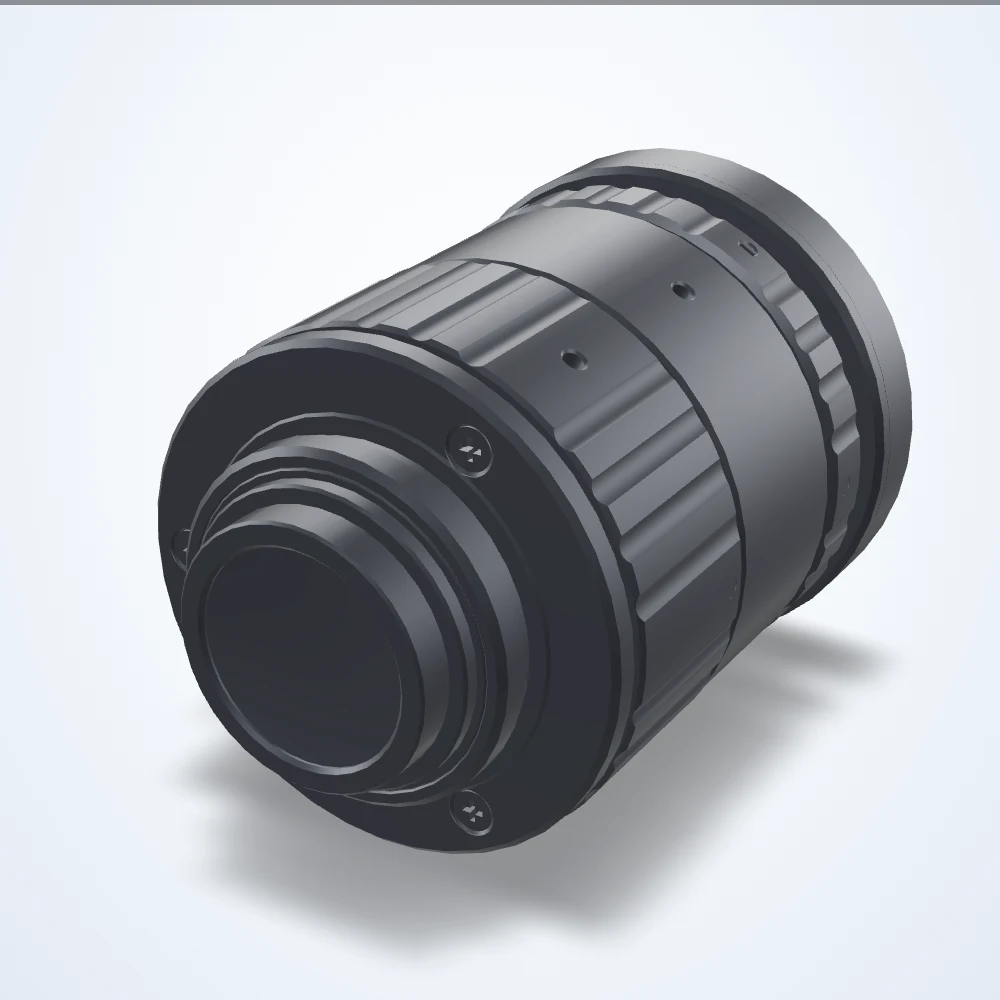

12 mm lens, 1", C-Mount (LS-FFL-0049)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

12 mm lens, 1", C-Mount (LS-FFL-0049)

Model LS-FFL-0049

12 mm lens, 1", C-Mount. Minimum object distance 100 mm. Aperture f/2.6 to f/16.

Datasheet (PDF) - LS-FFL-0049 3D model (STEP) - LS-FFL-0049

Specifications

Model	LS-FFL-0049
Filter Thread	M37.5-0.5
Focal Length	12 mm
Focus Range	0.1 m - ∞
Front Diameter	22.6 mm
Image Circle Diameter	16 mm
Image Size Dimensions	12.8 mm x 9.6 mm
Imager Format	1"
Lens Type	Fixed Focal Length
Light Spectrum	Visible
Minimum Object Distance	100 mm
Mount	C-Mount
Resolution (MP)	20
ƒ/N Max	f/2.6
ƒ/N Min	f/16
