Home / Lenses / Machine vision lenses / 1× lens, 1", C-Mount

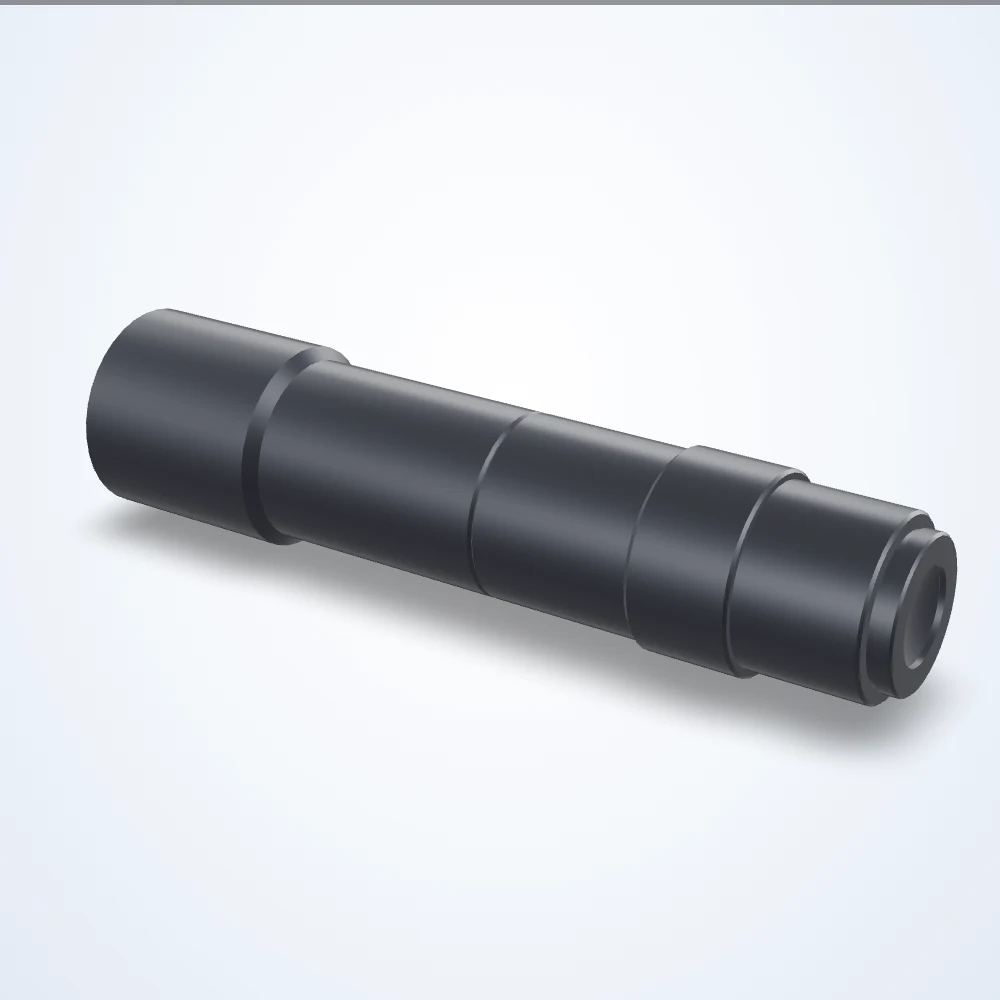

1× lens, 1", C-Mount (LS-FFL-0047)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

1× lens, 1", C-Mount (LS-FFL-0047)

Model LS-FFL-0047

1× lens, 1", C-Mount. Depth of field 0.72 mm. Minimum object distance 110.2 mm.

Datasheet (PDF) - LS-FFL-0047 3D model (STEP) - LS-FFL-0047

Specifications

Model	LS-FFL-0047
Depth Of Field	0.72 mm
Filter Thread	No Filter Threads
Image Circle Diameter	16 mm
Imager Format	1"
Lens Type	Fixed Focal Length
Light Spectrum	Visible
Magnification	1×
Minimum Object Distance	110.2 mm
Mount	C-Mount
Resolution (MP)	5
Resolution (Pixel Size)	6 μm
Working ƒ/N	f/9

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
