Home / Lenses / Machine vision lenses / 0.345× lens, 1.1", C-Mount

0.345× lens, 1.1", C-Mount (LS-FFL-0044)

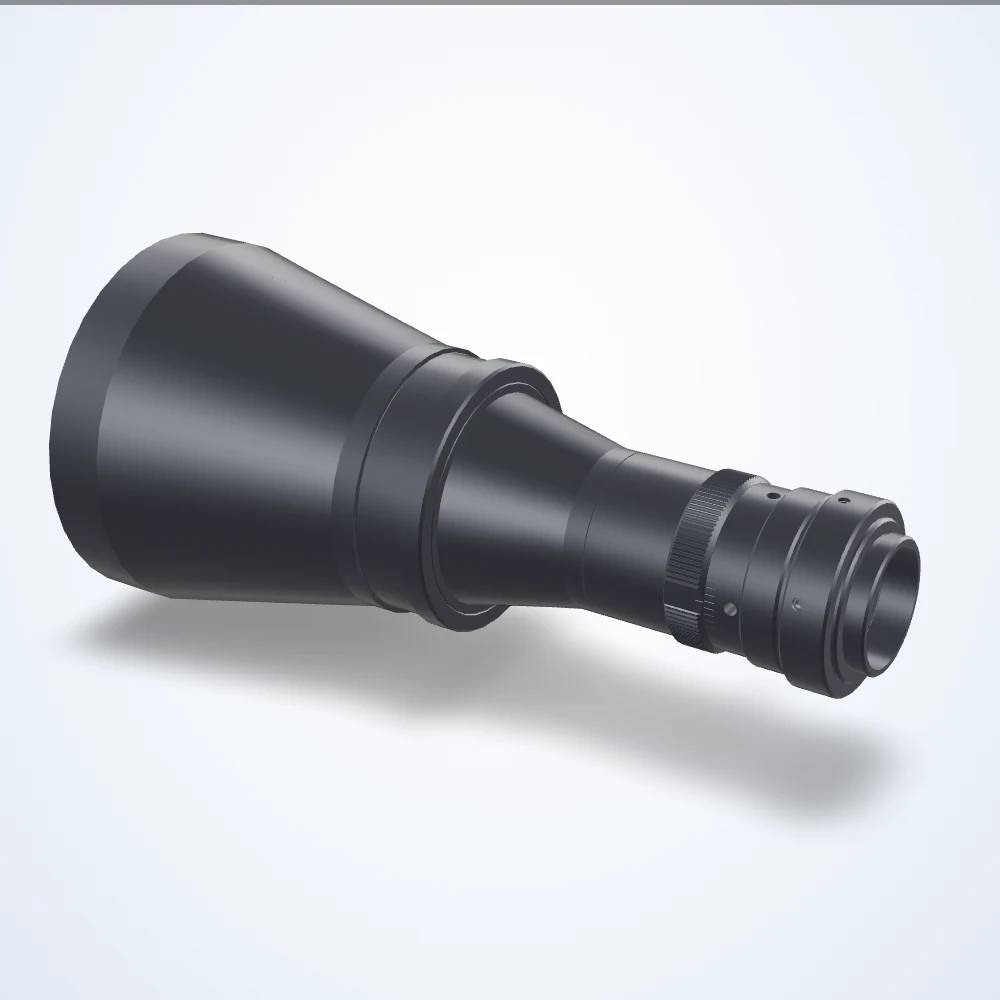

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

0.345× lens, 1.1", C-Mount (LS-FFL-0044)

Model LS-FFL-0044

0.345× lens, 1.1", C-Mount. Depth of field 6.63 mm. Minimum object distance 165.2 mm.

Datasheet (PDF) - LS-FFL-0044 3D model (STEP) - LS-FFL-0044

Specifications

Model	LS-FFL-0044
Depth Of Field	6.63 mm
Filter Thread	M72-0.75
Image Circle Diameter	17.6 mm
Imager Format	1.1"
Lens Type	Fixed Focal Length
Light Spectrum	Visible
Magnification	0.345×
Minimum Object Distance	165.2 mm
Mount	C-Mount
Resolution (MP)	12
Resolution (Pixel Size)	9.7 μm
Working ƒ/N	f/5 - f/32.4

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
