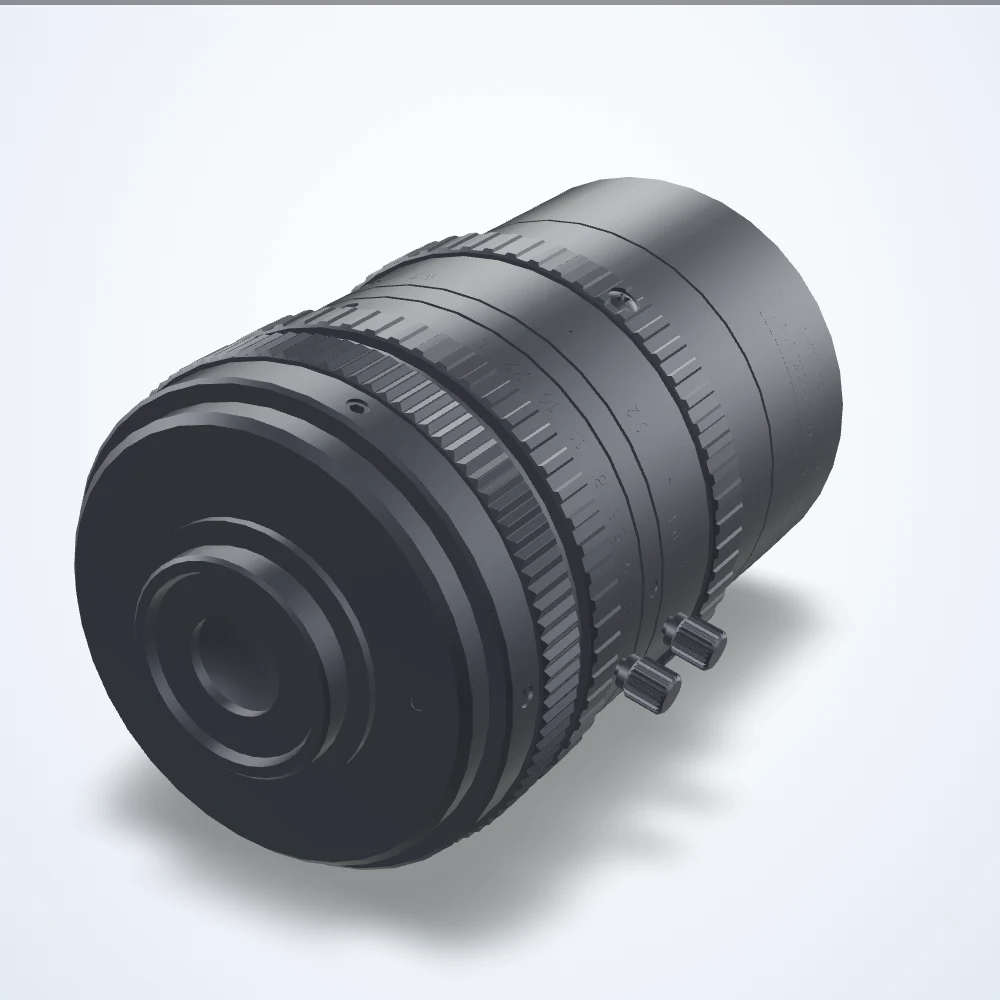

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
0.057 - 0.5× lens, 2/3", C-mount (LS-FFL-0043)
Model LS-FFL-0043
Machine vision lens for industrial cameras. Minimum object distance 140 mm.
Specifications
| Model | LS-FFL-0043 |
|---|---|
| Magnification | 0.057 - 0.5× |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Minimum object distance | 140 mm |
| Aperture (max) | f/3 |
| Back focal length | 17 mm |
| Dimensions | 59 × 59 × 93.1 mm |
| Filter thread | M46-0.75 |
| Focus control | Manual |
| Focus range | 0.14 m - 1 m |
| Front diameter | 30.8 mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 10.7 mm |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | 0.5 |
| Zoom range | Fixed |
| Weight | 400 |
