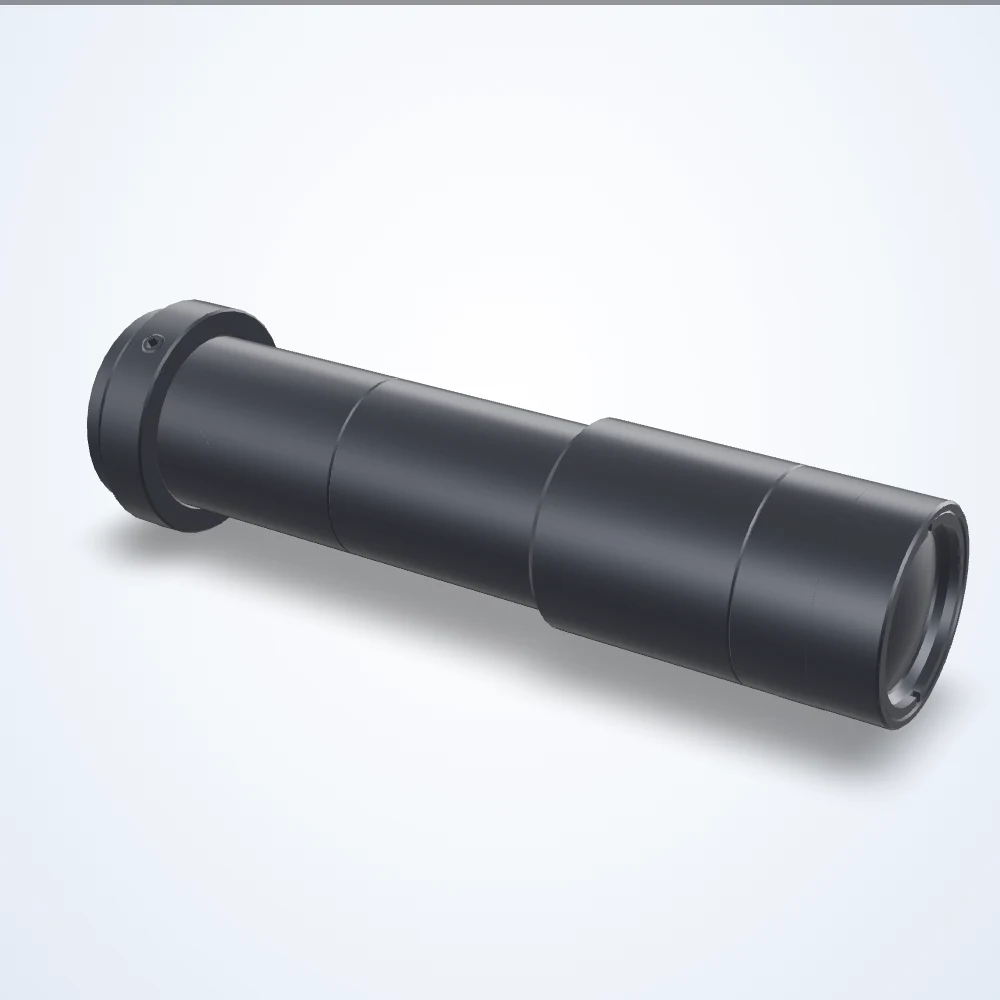

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
4× lens, 2/3", C-mount (LS-FFL-0042)
Model LS-FFL-0042
Machine vision lens for industrial cameras. Depth of field 0.08 mm; minimum object distance 65.3 mm.
Specifications
| Model | LS-FFL-0042 |
|---|---|
| Magnification | 4× |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 0.08 mm |
| Minimum object distance | 65.3 mm |
| Back focal length | 17 mm |
| Dimensions | 25 × 25 × 101.6 mm |
| Filter thread | No Filter Threads |
| Image circle | 12.8 mm |
| Lens type | Fixed Focal Length |
| Operating temperature range | 0 to +40 °C |
| Resolution (MP) | 2 |
| Spectrum | Visible |
| Tv distortion (%) | -0.003 |
| Working ƒ/n | f/16.9 |
| Zoom range | Fixed |
| Weight | 83 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
