4× lens, 2/3", C-Mount (LS-FFL-0041)

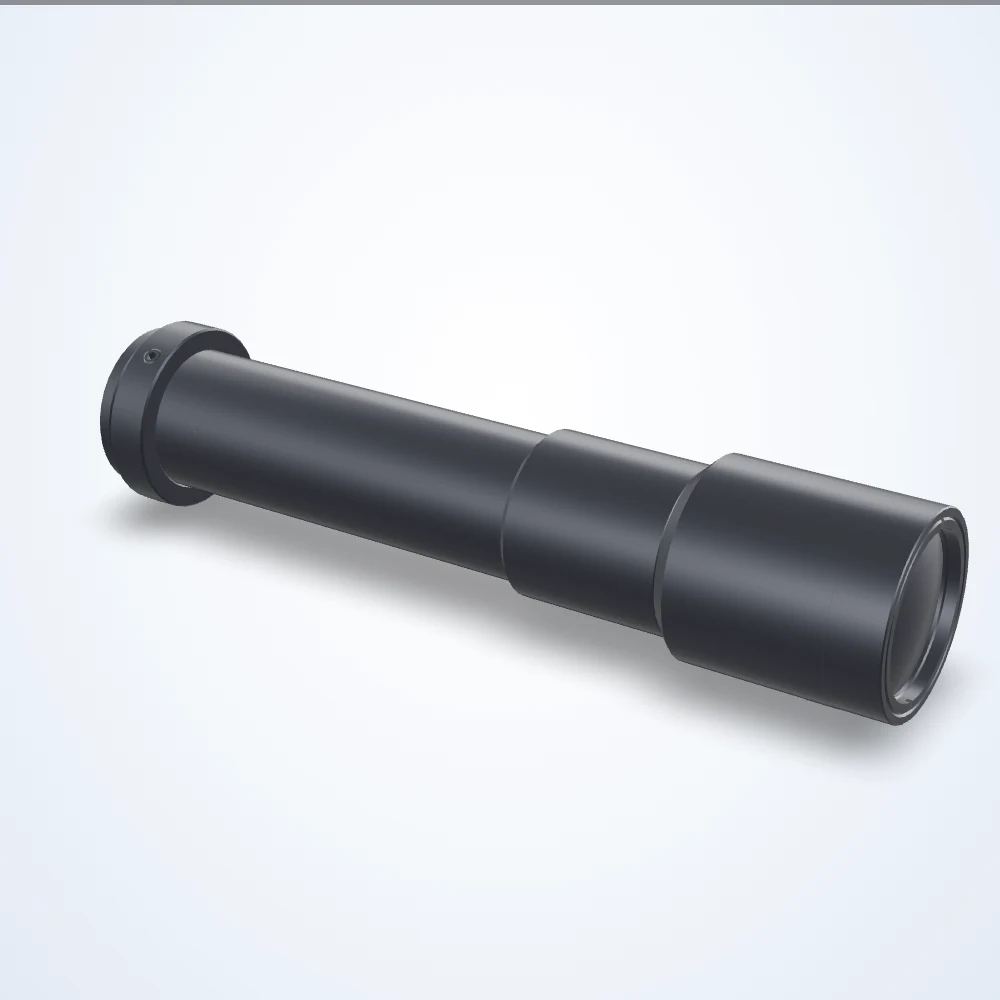

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

4× lens, 2/3", C-Mount (LS-FFL-0041)

Model LS-FFL-0041

4× lens, 2/3", C-Mount. Depth of field 0.11 mm. Minimum object distance 110.5 mm.

3D model (STEP) - LS-FFL-0041

Specifications

Model	LS-FFL-0041
Depth Of Field	0.11 mm
Filter Thread	No Filter Threads
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Fixed Focal Length
Light Spectrum	Visible
Magnification	4×
Minimum Object Distance	110.5 mm
Mount	C-Mount
Resolution (MP)	2
Resolution (Pixel Size)	3.7 μm
Working ƒ/N	f/21.9
